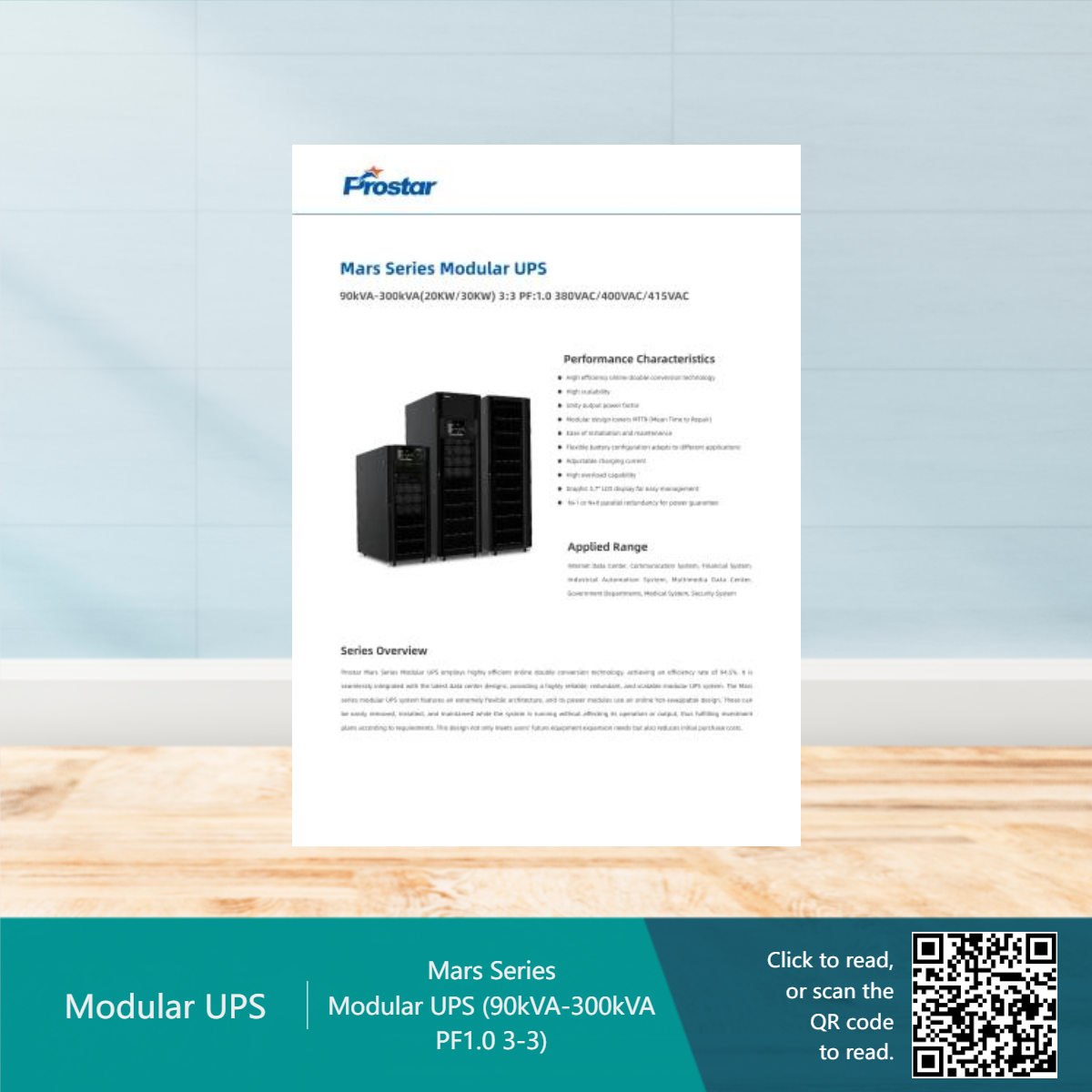

Mars Series Modular UPS (90kVA-300kVA PF1.0 3-3).pdf

Consulting Hotline：

+86-757-81285488

Product Description
Technical Specification
Applied Range
Product Catalogue

- Brand: Prostar
- Commodity name: Modular UPS 90kVA-300kVA (3/3 PF:1.0 380VAC/400VAC/415VAC)
Mars Series Modular UPS | Capacity: 90kVA-300kVA | Power Factor: 1.0 | Phase: 3/3 | Input/Output Voltage: 380VAC/400VAC/415VAC | Frequency: 50Hz/60Hz

Prostar Mars Series Modular UPS employs highly efficient online double conversion technology, achieving an efficiency rate of 94.5%. It is seamlessly integrated with the latest data center designs, providing a highly reliable, redundant, and scalable modular UPS system. The Mars series modular UPS system features an extremely flexible architecture, and its power modules use an online hot-swappable design. These can be easily removed, installed, and maintained while the system is running without affecting its operation or output, thus fulfilling investment plans according to requirements. This design not only meets users' future equipment expansion needs but also reduces initial purchase costs.

Features Introduction

1. High efficiency online double conversion technology
2. High scalability
3. Unity output power factor
4. Modular design lowers MTTR (Mean Time to Repair)
5. Ease of installation and maintenance
6. Flexible battery configuration adapts to different applications
7. Adjustable charging current
8. High overload capability
9. Graphic 5.7" LCD display for easy management
10. N+1 or N+X parallel redundancy for power guarantee
Key words:
- Modular UPS
- Modular Online UPS
- Modular Uninterrupted Power Supply UPS
- Three Phase Modular UPS
- Modular UPS System

Module Specification

Model	Description	Size(WxDxH mm)	Weight(Kg)
MPS-20KW	3P/3P 20KVA / 20KW power module	736.5x490x133 (3U)	34
MPS-30KW	3P/3P 30KVA / 30KW power module	736.5x490x133 (3U)	34.5

Technical Specification

Model	MPS90K	MPS120K	MPS180K	MPS200K		MPS210K	MPS300K
Phase	3-phase in / 3-phase out
Cabinet Model (VA/W)	90K	120K	180K	200K		210K	300K
Battery Type	External Battery
Power Module Capacity	30KVA/30KW			20KVA/20KW		30KVA/30KW
Max. Power Module No.	3	4	6	10		8	10
Cabinet Dimension (DxWxH mm)	1100x600x1475			1100x600x2010
Net Weight (Kg)	302	335	437.5	611		549	620
Input
Nominal Voltage	3×380VAC/400VAC/415VAC (3Ph+N)
Voltage Range	305~477VAC @ 100% Load; 208~304VAC @ 70% Load
Nominal Frequency	50/60Hz (Auto Sensing)
Frequency Range	40Hz~70Hz
Power Factor	>0.99 @ 100% Load, >0.98 @ 50% Load
Harmonic Distortion (THDi)	<3% @ 100% Load
Output
Nominal Voltage	3×380VAC/400VAC/415VAC (3Ph+N)
Voltage Stability (Steady State)	≤±1% Typical (Balanced Load); ≤±2% Typical (Unbalanced Load)
Nominal Frequency	50Hz/60Hz
Frequency Range (Synchronized)	46Hz~54Hz or 56Hz~64Hz
Overload Capability	1 Hour for 110%, 10 Min for 120%, 1 Min for 150%, 200Ms for >150%
Harmonic Distortion	≤2% THD (Linear Load); ≤4% THD (Non-linear Load)
Efficiency	Up to 94.5%
Battery / Charger
Nominal Voltage	±216V (12V×36 Pcs)
Maximum Voltage	±240V (12V×40 Pcs)
Minimum Voltage	±192V (12V×32 Pcs)
Float Charging Voltage	2.25V/Cell
Boost Charging Voltage	2.35V/Cell
Temperature Compensation	Yes
Maximum Charging Current	8A				6A	8A
Environment
Operating Temperature	0~40°C
Relative Humidity	0~95% Non-condensing
Altitude	<1000m for nominal power
IP Protection	IP20
Management
Smart RS-232 or USB	Supports Windows 2000/2003/XP/Vista/2008, Windows 7/8, Linux, Unix, MAC
Optional SNMP	Power management from SNMP manager and web browser
Standards
Safety	IEC/EN60950-1; IEC/EN62040-1
EMC	IEC/EN62040-2 Category C3

Note: Product specifications are subject to change without notice.

Network Data Center

Communication Systems

Financial Systems

Industrial Automation Systems

Multimedia Data Center

Government Departments

Medical Systems

Security Systems
