Industrial Digital UPS 10kVA-120kVA (3/3 PF:0.8 208VAC/220VAC/230VAC)


ET LV Series Industrial Digital UPS | Capacity: 10kVA-120kVA | Power Factor: 0.8 | Phase: 3/3 | Input/Output Voltage: 208VAC/220VAC/230VAC | Frequency: 40Hz-70Hz

Classify:

UPS

Low Frequency Online UPS

keywords:

Industrial UPS

Digital UPS

Three Phase UPS

Low Voltage UPS

Low Voltage Online UPS

图片名称

Consulting Hotline:

  • Product Description
  • Technical Specification
  • Applied Range

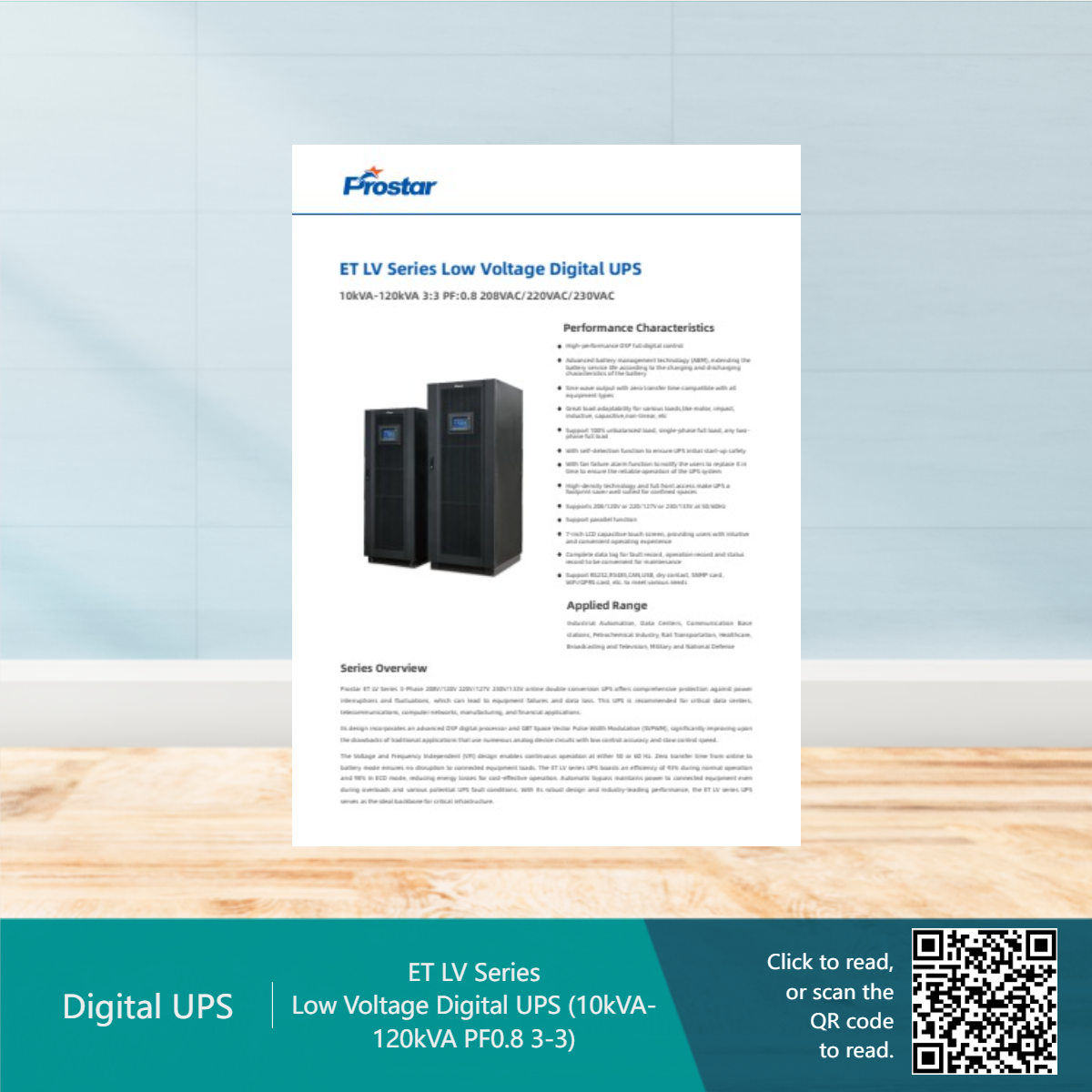

  • Product Catalogue
    • Brand: Prostar
    • Commodity name: Industrial Digital UPS 10kVA-120kVA (3/3 PF:0.8 208VAC/220VAC/230VAC)

    ET LV Series Industrial Digital UPS | Capacity: 10kVA-120kVA | Power Factor: 0.8 | Phase: 3/3 | Input/Output Voltage: 208VAC/220VAC/230VAC | Frequency: 40Hz-70Hz

    Prostar ET LV Series 3-Phase 208V/120V or 220V/127V or 230V/133V online double conversion UPS offers comprehensive protection against power interruptions and fluctuations, which can lead to equipment failures and data loss. This UPS is recommended for critical data centers, telecommunications, computer networks, manufacturing, and financial applications.


    Its design incorporates an advanced DSP digital processor and GBT Space Vector Pulse Width Modulation (SVPWM), significantly improving upon the drawbacks of traditional applications that use numerous analog device circuits with low control accuracy and slow control speed.



    The Voltage and Frequency Independent (VFI) design enables continuous operation at either 50 or 60 Hz. Zero transfer time from online to battery mode ensures no disruption to connected equipment loads. The ET LV series UPS boasts an efficiency of 93% during normal operation and 98% in ECO mode, reducing energy losses for cost-effective operation. Automatic bypass maintains power to connected equipment even during overloads and various potential UPS fault conditions. With its robust design and industry-leading performance, the ET LV series UPS serves as the ideal backbone for critical infrastructure.







    Features Introduction



    ● High-performance DSP full digital control


    ● Advanced battery management technology (ABM), extending the battery service life according to the charging and discharging characteristics of the battery


    ● Sine wave output with zero transfer time compatible with all equipment types


    ● Great load adaptability for various loads,like motor, impact, inductive, capacitive,non-linear, etc


    ● Support 100% unbalanced load, single-phase full load, any two-phase full load


    ● With self-detection function to ensure UPS initial start-up safety


    ● With fan failure alarm function to notify the users to replace it in time to ensure the reliable operation of the UPS system


    ● High-density technology and full front access make UPS a footprint saver well suited for confined spaces


    ● Supports 208/120V or 220/127V or 230/133V at 50/60Hz


    ● Support parallel function


    ● 7-inch LCD capacitive touch screen, providing users with intuitive and convenient operating experience


    ● Complete data log for fault record, operation record and status record to be convenient for maintenance


    ● Support RS232,RS485,CAN,USB, dry contact, SNMP card, WiFi/GPRS card, etc. to meet various needs






    Performance Characteristics



    Full Digital DSP Control

    The UPS core system adopts advanced DSP full digital control technology in UPS invertercontrol, phase synchronization, input rectification control and logic control with highprecision, high speed and better performance.


    Advanced IGBT Inverter Technology

    The combination of high-efficiency and high-reliability IGBT inverter technology and Space Vector Pulse Width Modulation (SVPWM), UPS can reduce system noise and power loss,ensuring that the users can obtain high-quality voltage output and the best economicbenefits under various workload conditions. The efficiency of the whole UPS systemexceeds 93%.




    Human-Machine Interface

    The 7-inch color touch screen can provide text and mimic diagrams display at the sametime, which is suitable for users to view status, data and operation control. The internalCPU can record historical events and alarm information, and the information storagecapacity is up to 10,000.

    The display content includes: input voltage, input frequency, output voltage, output current,output frequency, active power, apparent power, load rate, float charge voltage, equalizingcharge voltage, charging current, charger temperature, battery voltage, battery packtemperature, remaining battery discharge time, percentage of remaining battery capacity.battery status, historical records, etc.


    Intelligent

    Advanced digital calibration function, the voltage and current can be calibrated by softwarewithout any adjustable resistance.

    Self-diagnostic technology, real time monitor the working status of inverter, rectifier andother circuits, detect battery capacity and status, detect UPS working ambient temperature,and detect the failure of each fan to avoid UPS failure.




    Low Power Consumption and High Efficiency

    Support ECO economic mode operation. When ECO fault,it will transfer to inverterautomatically. Allow users to select Online / ECO /Bypass operation modes. In the ECO economic mode, the UPS operating efficiency can be up to more than 98%, which caneffectively reduce the UPS system power consumption. And it's the first choice for low-carbon times.




    Advance Battery Management

    Adopt intelligent advance battery management (ABM) technology to reduce batterymaintenance times. The advanced constant current and constant voltage automaticconversion charging technology can activate the battery maximally and save charging time.

    The battery management system has functions, such as battery capacity prediction,discharge time estimation, and low-voltage warming. Moreover, it can perform self-diagnosisand self-checking for the battery pack, with charging voltage temperature compensation,intelligent adjustment of battery discharge termination voltage, automatic battery dischargeactivation at regular intervals, automatic setting battery charging current and other functions(this part of the function requires separate configuration components, non-standard), supportlithium-ion batteries (requires separate configuration components, non-standard).


    Predictive Alarm System

    The LCD panel has automatic detection function, timely forecast and alarm in advance, and self-diagnosis function when UPS initial start-up, which can avoid the risk of failure and personalsafety that may be caused by UPS hidden dangers in time.

    Support automatic and manual battery online test functions. Users can set different test cyclessuch as day, week, and month to perform automatic battery test, provide sound and light alarms,and display corresponding information on the LCD display to discover potential battery failures in time.




    Powerful Parallel Redundant / Parallel Capacity Function

    DSP full digital control technology in the core system, ET-LV series online UPS has not only N+1 or N+X parallel redundancy, but also increases total power capacity, it can be simultaneouslyparallel within 8 units, which greatly reduces the user's up-front purchasing costs and subsequent growth costs.


    Superior Environmental Adaptability

    There is superior environmental adaptability for ET-LV series Online UPS, and a wide AC input voltage range, thereby reducing battery usage frequency to extend its service life.

    Wide AC input frequency range is suitable for connecting various fuel generators.

    Three phase output allows 100% unbalanced for 3 phase loads.

    Great load adaptability supports RCD non-inear load, industrial grade impact load, motor load, etc.

    All circuit boards adopt three-anti-coating technology, that is, dust-proof, anti-humidity, and sall-proof. The UPS can be used in harsh environments, and extend UPS service life.


    True Online Double Conversion Technology

    True online double conversion technology makes the UPS pure sine output with frequencytracking, phase locking, voltage stabilization, and noise filtering, which is not interfered byelectrical grid fluctuations. Output zero transfer time enables UPS to provide more comprehensiveprotection for users'precision equipment.

    ET-LV UPS is built-in isolation transformer, static bypass switch and manual maintenance bypass switch.




    Multiple Communication Interfaces

    There are a variety of communication interfaces to monitor the UPS operation status, like RS232,RS485,USB, CAN, NET, Input/Output dry contact, SNMP card, WIFI card, GPRS card and 4G card, etc.

    Through external connecting "Prostar IOT" smart dloud box (optional), computer monitoring andmobile APP(including IOS and Android) monitoring can be performed, with remote networkmanagement functions. It can also send alarm information via Wechat or mobile text messages toprovide reaktime UPS data and power information.


    Battery Cold Start

    In the abnormal state of the utility power, the UPS with a battery cold start switch can be starteddirectly with the battery to meet emergency needs. When the battery is discharged to EOD, UPSonly start automatically while the utility is restored, and it has an unattended function.


    Integrating lsolation Transformer

    ET-LV series UPS is equipped with an isolation transformer, fully integrated to the UPS unit depending on the customer's galvanic isolation need (output andinput). Integrating the transformer directly to the UPS saves footprint and provides all the benefits of galvanic isolation including a very robust buffer betweenthe utility and the critical load.


    Comprehensive Protection

    The UPS provides perfect software and hardware protection, as well as fan failure alarm. It also provides various protections, like AC input overvoltage/under-voltageprotection, AC output overvoltage/under-voltage protection, overload, short-circuit protection, over-temperature protection for inverter and rectifier, battery under-voltagewarning and under-voltage protection, battery over-charge protection and other protections to ensure the UPS system operation stability and reliability. Powerful overloadability, it can maintain 60 minutes / 10 minutes / 1 minute under 110%/125%/ 150% overload.






    Key words:
    • Industrial UPS
    • Digital UPS
    • Three Phase UPS
    • Low Voltage UPS
    • Low Voltage Online UPS
  • Model

    ET10K LV

    ET15K LV

    ET20K LV

    ET30K LV

    ET40K LV

    ET60K LV

    ET80K LV

    ET100K LV

    ET120K LV

    Capacity(VA/W)

    10K/8K

    15K/12K

    20K/16K

    30K/24K

    40K/32K

    60K/48K

    80K/64K

    100K/80K

    120K/96K

    Size(WxDxH mm)

    490x630x1130

    500x700x1300

    600x700x1600

    700x800x1800

    Weight(Kg)

    210

    230

    260

    325

    365

    440

    615

    620

    650

    Input

    Input Phase Number

    3 phases 5 wires (3Ph+N+PE)

    Input Rated Voltage

    208VAC/220VAC/230VAC (L-N 120VAC/127VAC/133VAC)

    Variable Input Voltage Range

    167V - 250V

    Input Frequency Variation Range

    40Hz - 70Hz

    Input Power Factor

    >0.99

    Input Current Limit

    1.25 times the rated current (0.1 - 1.25 can be set)

    Rectifier Delay Start Range

    Default 10s (1 - 300s can be set)

    Bypass Input Voltage Range

    Upper limit 10%, 15%, 20%, 25% can be set, Default 20%; Lower limit 10%, 20%, 30%, 40%, 50%, 60% can be set, Default 20%

    Battery Voltage

    Default 360VDC (336VDC, 348VDC, 372VDC, 384VDC can be set)

    Number of Batteries

    Default 12V 30 sections (28 - 32 sections can be set)

    Battery Charging Current

    Charge rate × battery capacity × battery pack number (charge rate, battery capacity, battery pack number can be set)

    ECO Mode

    Bypass Voltage Range

    Upper limit 5%, 10%, 15% can be set, Default 5%; Lower limit 5%, 10%, 15% can be set, Default 5%

    Bypass Frequency Range

    ±1Hz, ±2Hz, ±3Hz can be set, Default ±2Hz

    Output

    Output Phase Number

    3 phases 5 wires (3Ph+N+PE)

    Rated Output Voltage

    208VAC/220VAC/230VAC (L-N 120VAC/127VAC/133VAC)

    Output Voltage Regulation Accuracy

    ±1%

    Output Voltage Fine Adjustment

    0V (±1~±5V can be set)

    Output Frequency Accuracy

    Mains mode: tracking bypass input in synchronization state; battery mode: 50Hz/60Hz ±0.1%

    Output Power Factor

    0.8

    Output Waveform Distortion

    <2% (Resistive load); <5% (non-linear load)

    Waveform

    Pure sine wave

    Output Current Crest Factor

    3:1

    Inverter Overload Capacity

    When the load is <105%, it can work for a long time; when 105% < load < 110%, it will switch to bypass output after 60 minutes; when 110% < load < 125%, switch to bypass output after 10 minutes; when 125% < load < 150%, switch to bypass output after 1 minute; when load > 150%, switch to bypass output after 200 milliseconds

    System Indicators

    System Efficiency

    Online mode: >93%, ECO mode: >98%

    Switching Time

    0ms

    Number of Parallel

    ≤8 sets

    Protective Function

    Output short-circuit protection, output overload protection, over-temperature protection, battery low voltage protection, output over and under voltage protection, fan failure protection, etc.

    Communication Interface

    Standard configuration: USB, CAN, EPO, RS232, RS485, dry contact; Optional configuration: SNMP card, temperature compensation accessories

    Display

    7-inch LCD touchscreen

    Working Environment

    Operating Temperature

    0-40°C

    Storage Temperature

    -25°C-55°C (Exclude battery)

    Relative Humidity

    0%-95% (No condensation)

    Altitude

    Altitude <1000M, exceed 1000M, Power with increase of 100M it will reduce 1%

    Degree of Protection

    IP30

    Noise

    <65dB (1 meter from the device)

    Optional

    Parallel Module, SNMP Card, Battery Temperature Compensation



    Note: Product specifications are subject to change without notice.






  •
