Low Frequency UPS 10kVA-300kVA (3/3 PF:0.8 220VAC/230VAC/440VAC/480VAC)


Uranus PLUS Series Low Frequency Online UPS | Capacity: 10kVA-300kVA | Power Factor: 0.8 | Phase: 3/3 | Input/Output Voltage: 208VAC/220VAC/230VAC/240VAC/440VAC/480VAC | Frequency: 50Hz/60Hz

Classify:

UPS

Low Frequency Online UPS

keywords:

Low Frequency Online UPS

Low Frequency UPS

Three Phase UPS

Three Phase Online UPS

Online UPS

图片名称

Consulting Hotline:

  • Product Description
  • Technical Specification
  • Applied Range

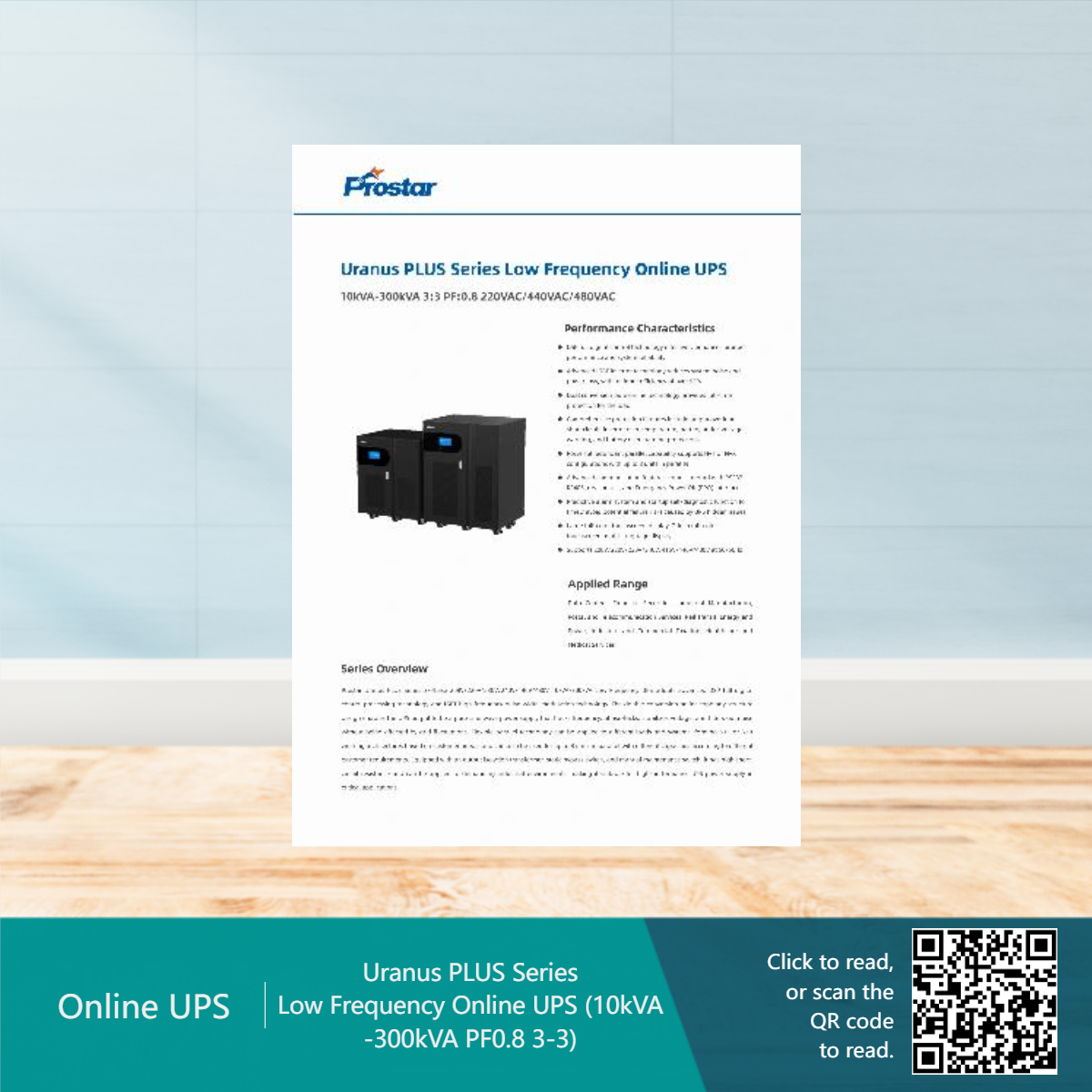

  • Product Catalogue
    • Brand: Prostar
    • Commodity name: Low Frequency UPS 10kVA-300kVA (3/3 PF:0.8 220VAC/230VAC/440VAC/480VAC)

    Uranus PLUS Series Low Frequency Online UPS | Capacity: 10kVA-300kVA | Power Factor: 0.8 | Phase: 3/3 | Input/Output Voltage: 208VAC/220VAC/230VAC/240VAC/440VAC/480VAC | Frequency: 50Hz/60Hz

    Prostar Uranus PLUS Series 3-Phase 10kVA-300kVA Low Frequency UPS utilizes advanced DSP full digital control processing technology and IGBT high-frequency pulse width modulation technology. The double-conversion online topology structure design ensures the UPS output is a pure sine wave power supply that tracks frequency, phase-locks, stabilizes voltage, and filters out noise without being affected by grid fluctuations. Flexible parallel technology can be applied to different loads and systems, forming N+1 or N+X working architectures based on customer needs, and can also be used for up to 8 units in parallel with different capacities according to varying customer requirements. Equipped with an output isolation transformer, static bypass switch, and manual maintenance switch, it has high short circuit resistance and can be applied to demanding industrial environments, making it suitable for high-performance UPS power supply in critical applications.






    Features Introduction



    1. DSP full digital control technology effectively enhances product performance and system reliability.
    2. Advanced IGBT inverter technology reduces system noise and power loss, with an input efficiency of over 95%.
    3. Dual conversion pure online technology provides full-time protection for the load.
    4. Comprehensive protection features include output overload, short circuit, inverter over-temperature, battery under-voltage warning, and battery overcharging protections.
    5. Powerful redundant parallel capability supports N+1 or N+X configurations with up to 8 units in parallel.
    6. Advanced communication features come standard with RS232, RS485, dry contact, and Emergency Power Off (EPO) interfaces.
    7. Predictive alarm system and startup self-diagnostic function to timely avoid potential failure risks caused by UPS hidden issues.
    8. Large full-color touchscreen display, 7-inch full-color touchscreen, multi-language display.
    9. Supports 208V/220V/230V/240V/415V/440V/480V at 50/60Hz.






    Key words:
    • Low Frequency Online UPS
    • Low Frequency UPS
    • Three Phase UPS
    • Three Phase Online UPS
    • Online UPS
  • Model

    GT10K PLUS

    GT15K PLUS

    GT20K PLUS

    GT30K PLUS

    GT40K PLUS

    GT50K PLUS

    GT60K PLUS

    GT80K PLUS

    GT100K PLUS

    GT120K PLUS

    GT160K PLUS

    GT200K PLUS

    GT300K PLUS

    Capacity (VA/W)

    10K/8K

    15K/12K

    20K/16K

    30K/24K

    40K/32K

    50K/40K

    60K/48K

    80K/64K

    100K/80K

    120K/96K

    160K/128K

    200K/160K

    300K/240K

    Battery Voltage

    384V

    480V

    UPS Efficiency

    ≥95%

    Noise

    48~54dB

    (Distance1m)

    53~60dB

    Distance1m)

    53~62dB

    (Distance1m)

    54~65dB

    (Distance1m)

    Size

    (WxDxH mm)

    835x695x1000

    905x740x1220

    1450x750x1400

    1720x750x1400

    2220x908x1650

    Weight (Kg)

    170

    185

    200

    275

    345

    360

    390

    560

    600

    750

    940

    1170

    1240

    Input

    Voltage

    3 phase 4 wires and ground, 208V/220V/230V/240V/440V/480V ±25%

    Frequency

    50Hz/60Hz ±5% (Automatically)

    Power Factor

    ≥0.95

    Output

    Voltage

    3 phase 4 wires and ground, 208V/220V/230V/240V/440V/480V ±1%

    Frequency

    50Hz/60Hz ±0.05% (by battery)

    Harmonic Distortion

    Linear Load <3%, Non-linear load <5%

    Imbalance Voltage

    Balance load =1%, Imbalance load =3%

    Phase Shift Angle

    Balance load ≤ ±1°, Imbalance load ≤ ±2°

    Dynamic Transient Range

    Output at 0-50%~100% ≤5%, Response ≤10ms

    Overload Capacity

    110% ≥300 Min, 125% ≥10 Min, 150% ≥1 Min

    Crest Factor

    3:1

    Wave Form

    Pure sine wave

    Transfer Time

    0ms

    Battery

    Max Charging Current

    0.2A x C10

    Charging Time (Standard)

    12 Hours

    System Performance

    Protective Function

    Input overvoltage, undervoltage, output overload, short circuit, inverter over-temperature, battery undervoltage, overvoltage

    Running Temperature & Humidity

    Temperature 0~40°C, Humidity 0~95% (non-condensing)

    Altitude

    <1000m (with increase of 100m, it will reduce output of 1%) max 4000m

    Communication Interface

    RS232, RS485

    Remote Signaling

    Dry contact (battery low, battery discharging, bypass/fault), EPO

    Remote Control

    EPO and bypass

    Degree of Protection

    IP20

    Parallel Mode

    N+1, N+X, can be in parallel with different power capacity

    Software Interface

    Windows 9x, 2000, NT, ME, XP, Linux, Novell, MacOS X, NT 4.0

    Mean Time Between Failures

    300,000 Hours

    Other

    Dustproof & dampproof, Isolating inverter transformer, lightning surge absorption, state switches, manual maintenance switch

    Optional

    Parallel Module, Cold Start, SNMP Card,12 Pulse,ECO



    Note: Product specifications are subject to change without notice.




  •
