Wall Mounted Lithium Battery Pack 5.12kWh-14.34kWh

PLW Series Wall Mounted Lithium Battery Pack | 5.12kWh / 10.24kWh / 14.34kWh | Protection Grade: IP20

Classify：

Lithium Battery Storage System

Lithium Battery Pack

keywords：

Wall Mounted Lithium Battery Pack

Lithium Battery Pack

Wall-mounted Battery

LiFePO4 Lithium Ion Batteries

Wall-mounted Energy Storage Battery

File Download：

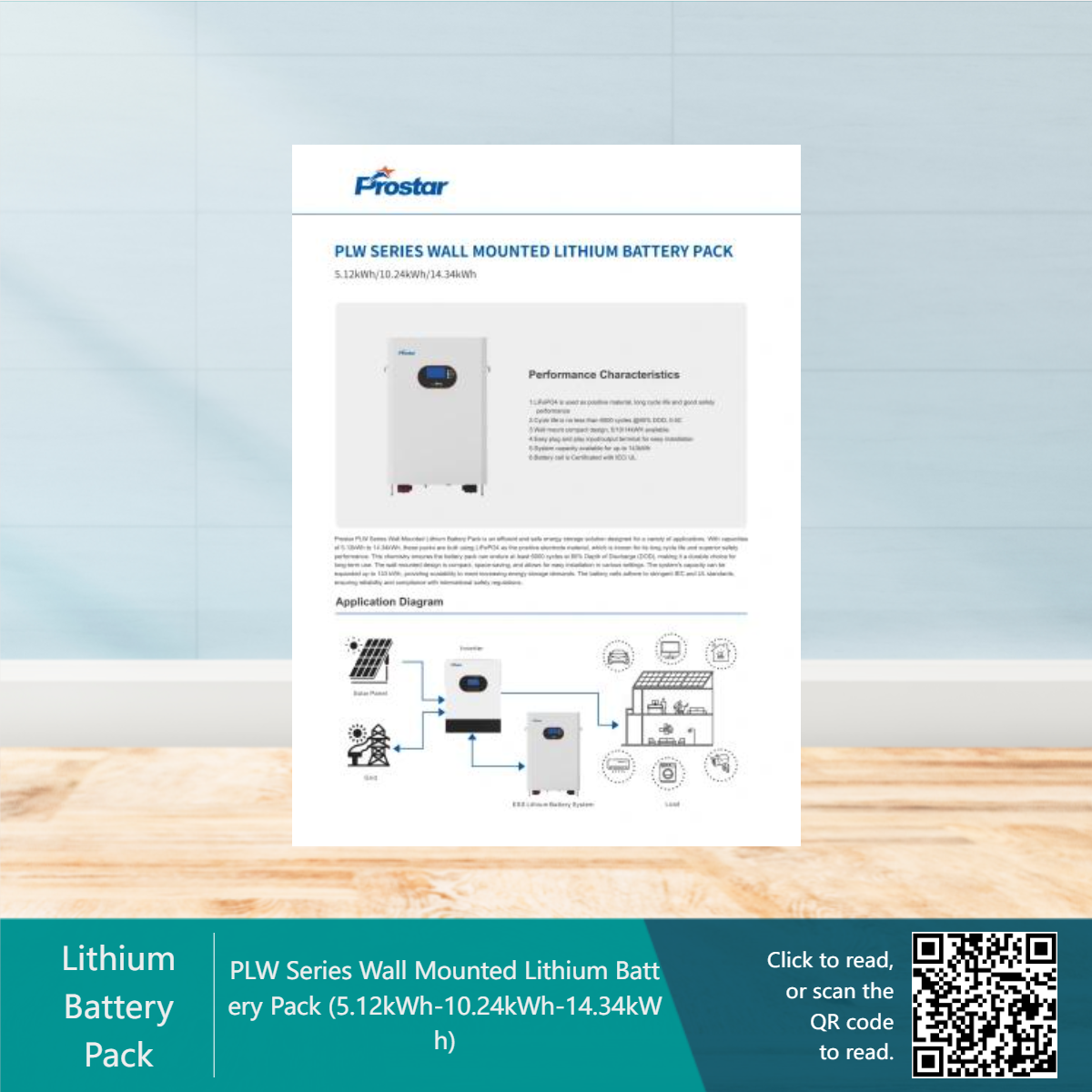

PLW Series Wall Mounted Lithium Battery Pack (5.12kWh-10.24kWh-14.34kWh).pdf

Consulting Hotline：

+86-757-81285488

Product Description
Technical Specification
Applied Range
Product Catalogue

- Brand: Prostar
- Commodity name: Wall Mounted Lithium Battery Pack 5.12kWh-14.34kWh
PLW Series Wall Mounted Lithium Battery Pack | 5.12kWh / 10.24kWh / 14.34kWh | Protection Grade: IP20

Prostar PLW Series Wall Mounted Lithium Battery Pack is an efficient and safe energy storage solution designed for a variety of applications. With capacities of 5.12kWh, 10.24kWh, and 14.34kWh, these packs are built using LiFePO4 as the positive electrode material, which is known for its long cycle life and superior safety performance. This chemistry ensures the battery pack can endure at least 6000 cycles at 80% Depth of Discharge (DOD), making it a durable choice for long-term use. The wall-mounted design is compact, space-saving, and allows for easy installation in various settings. The system's capacity can be expanded up to 143 kWh, providing scalability to meet increasing energy storage demands. The battery cells adhere to stringent IEC and UL standards, ensuring reliability and compliance with international safety regulations.

These battery packs feature easy plug-and-play input/output terminals, simplifying the installation process and allowing for quick integration into existing systems. The PLW Series is ideal for both residential and commercial use, offering a reliable and efficient way to store energy for backup power, peak shaving, or renewable energy integration. The combination of high safety standards, long cycle life, and flexible installation options makes the PLW Series a smart choice for enhancing energy management and resilience.

Features Introduction

1. LiFePO4 is used as the positive electrode material, offering a long cycle life and good safety performance.
2. The cycle life is no less than 6000 cycles at 80% Depth of Discharge (DOD), 0.5C.
3. Wall-mounted compact design, available in 5/10 kWh capacities.
4. Easy plug-and-play input/output terminals for easy installation.
5. System capacity available up to 143 kWh.
6. The battery cell is certified with IEC and UL standards.

Application Diagram
Key words:
- Wall Mounted Lithium Battery Pack
- Lithium Battery Pack
- Wall-mounted Battery
- LiFePO4 Lithium Ion Batteries
- Wall-mounted Energy Storage Battery

MODEL	PLW24200	PLW51100	PLW51200	PLW51280
Electrical Characteristics
Rated Voltage (VDC)	25.6	51.2	51.2	51.2
Cell Combination	8S2P	16S1P	16S2P	16S1P
Rated Capacity (Ah)	200	100	200	280
Energy Storage (kWh)	5.12	5.12	10.24	14.34
Cycle Life	6000 cycles @60% DOD, 0.5C
Charge / Discharge Standard
Charge Voltage (V)	28	56
Max. Charge Current (A)	100 (Optional 150/200A for 200Ah pack)
Max. Discharge Current (A)	100 (Optional 150/200A for 200Ah pack)
Discharge Cut-off Voltage (VDC)	22	43.2
Charge Cut-off Voltage (VDC)	29.2	58.4
Environment
Charge Temperature	0°C to 50°C @60±25% Relative Humidity
Discharge Temperature	-20°C to 50°C @60±25% Relative Humidity
Storage Temperature	-20°C to 50°C @60±25% Relative Humidity
Mechanical
Protection Grade	IP20 (IP65 Option available for 100AH model)
Cell	LiFePO4
Case Material	Metal
Installation	Wall Mount
Pack Dimension LxWxH (mm)	580x390x180	580x390x185	690x485x226	680x483x221
Package Dimension LxWxH (mm)	660x450x240	660x450x240	850x570x285	850x570x285
Net Weight (Kg)	46	44	88	116
Gross Weight (Kg)	51	49	98	142
Communication
Protocol (Optional)	CANBus/RS485/RS232
Monitoring (Optional)	Bluetooth/WLAN
Certificates
Pack	CE/UN38.3/MSDS
Cell	UN38.3, MSDS, IEC62619, CE, UL1973, UL2054

Note: Product specifications are subject to change without notice.

Solar and wind energy systems

Home energy storage

Electric vehicles

Grid regulation

Microgrids and off-grid systems

Industrial backup power supplies

UPS and data centers

Telecommunication base stations
