Wall Stand Lithium Battery System 10.24kWh-20.48kWh (LV)

PLS 5LV Series Wall Stand Lithium Battery System | 10.24kWh / 15.36kWh / 20.48kWh | Protection Grade: IP65

Classify：

Lithium Battery Storage System

Lithium Battery Pack

keywords：

Wall Stand Lithium Battery System

Stand Lithium Battery

Lithium Battery System

Wall-mounted Stand Lithium Battery

Wall Stand Lithium Battery Pack

File Download：

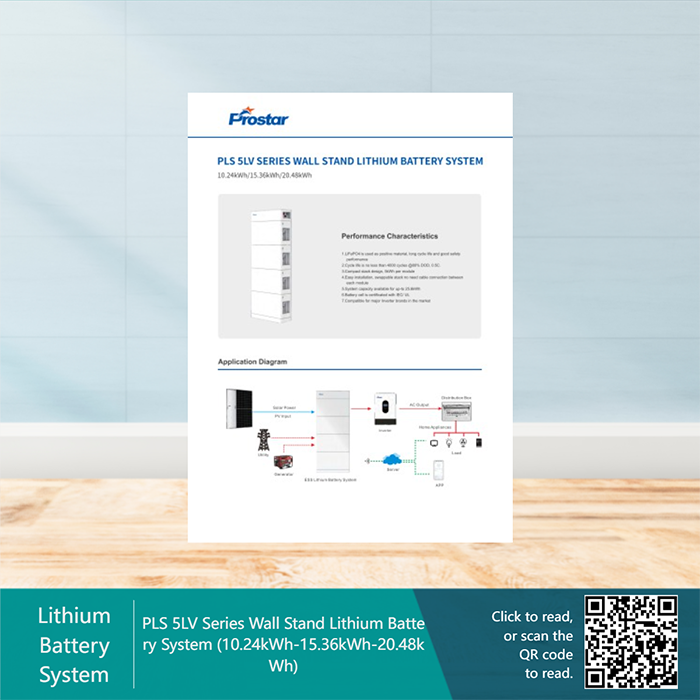

PLS 5LV Series Wall Stand Lithium Battery System (10.24kWh-15.36kWh-20.48kWh).pdf

Consulting Hotline：

+86-757-81285488

Product Description
Technical Specification
Applied Range
Product Catalogue

- Brand: Prostar
- Commodity name: Wall Stand Lithium Battery System 10.24kWh-20.48kWh (LV)
PLS 5LV Series Wall Stand Lithium Battery System | 10.24kWh / 15.36kWh / 20.48kWh | Protection Grade: IP65

Prostar PLS 5LV Series Wall Stand Lithium Battery System is a versatile and efficient energy storage solution designed for a range of applications. With capacities of 10.24kWh, 15.36kWh, and 20.48kWh, these systems are built using LiFePO4 as the positive electrode material, which is known for its long cycle life and excellent safety performance. This chemistry ensures a minimum of 4000 cycles at 80% Depth of Discharge (DOD), providing durability and reliability for long-term energy storage needs. The compact stack design allows for each module to deliver 5kWh of energy, and the swappable stacks facilitate easy installation without the need for cable connections between modules. The system's capacity can be expanded up to a maximum of 25.6kWh, offering scalability to meet increasing energy demands. Certified by IEC and UL standards, these battery cells meet international safety and performance requirements, and their compatibility with major inverter brands ensures seamless integration into various systems.

Features Introduction

1. LiFePO4 is used as the positive electrode material, offering a long cycle life and good safety performance.
2. The cycle life is no less than 4000 cycles at 80% Depth of Discharge (DOD), 0.5C.
3. Compact stack design, with each module providing 5kWh of energy.
4. Easy installation is facilitated by swappable stacks, eliminating the need for cable connections between each module.
5. The system's capacity can be expanded up to a maximum of 25.6kWh.
6. The battery cell is certified by IEC and UL standards.
7. It is compatible with major inverter brands available in the market.

Application Diagram
Key words:
- Wall Stand Lithium Battery System
- Stand Lithium Battery
- Lithium Battery System
- Wall-mounted Stand Lithium Battery
- Wall Stand Lithium Battery Pack

MODEL	PLS-5LV2	PLS-5LV3	PLS-5LV4
Electrical Characteristics
Nominal Voltage (VDC)	51.2
Energy Storage (kWh)	10.24	15.36	20.48
Cycle Life	6000 cycles @80% DOD, 0.5C
Monthly Self Discharge	≤2%
Charge / Discharge Standard
Charge Voltage (V)	56
Max. Charge Current (A)	100
Max. Discharge Current (A)	100
Discharge Cut-off Voltage (VDC)	43.2
Charge Cut-off Voltage (VDC)	58.4
Environment
Charge Temperature	0°C to 50°C @60±25% Relative Humidity
Discharge Temperature	-20°C to 50°C @60±25% Relative Humidity
Storage Temperature	-20°C to 50°C @60±25% Relative Humidity
Mechanical
Protection Grade	IP65
Installation	Stand Stack
Pack Dimension LxWxH (mm)	640×205×897	640×205×1239	640×205×1588
Package Dimension LxWxH (mm)	760×335×450×2	760×335×450×3	760×335×450×4
	705×395×240×1	705×395×240×1	705×395×240×1
Net Weight (Kg)	14+48×2	14+48×3	14+48×4
Gross Weight (Kg)	21+53×2	21+53×3	21+53×4
Communication
Protocol (Optional)	CANBus/RS485/RS232
Monitoring (Optional)	Bluetooth/WLAN
Certificates
Cell	UN38.3, MSDS
Pack	UN38.3, MSDS, IEC62619, CE; UL1973, UL2054

Note: Product specifications are subject to change without notice.

Solar and wind energy systems

Home energy storage

Electric vehicles

Grid regulation

Microgrids and off-grid systems

Industrial backup power supplies

UPS and data centers

Telecommunication base stations
