- Commodity name: Wall Stand Lithium Battery System 10.24kWh-25.60kWh (HV)
PLS 5HV Series Wall Stand Lithium Battery System | 10.24kWh / 15.36kWh / 20.48kWh / 25.60kWh | Protection Grade: IP65

Prostar PLS 5HV Series Wall Stand Lithium Battery System is a robust energy storage solution designed for high-voltage applications, with capacities ranging from 10.24kWh to 25.60kWh. These systems utilize LiFePO4 as the positive electrode material, which is recognized for its long cycle life and excellent safety performance, ensuring the battery system's durability and reliability. With a minimum cycle life of 4000 cycles at 80% Depth of Discharge (DOD), 0.5C, these systems are built to last while maintaining high performance.

A key feature of the PLS 5HV Series is the integrated Battery Management System (BMS), which offers comprehensive protection with voltage, current, and temperature safeguards, along with alarm functions. The BMS also measures current, voltage, cell temperature, and ambient temperature, providing precise monitoring and control. The compact stack design allows for each module to provide 5kWh at 102.4V, and the swappable stacks simplify installation by eliminating the need for cable connections between modules. The system's capacity can be expanded up to a maximum of 25.6kWh, offering scalability for varying energy needs.

Features Introduction

1. LiFePO4 is used as the positive electrode material, offering a long cycle life and good safety performance.
2. The cycle life is no less than 4000 cycles at 80% Depth of Discharge (DOD), 0.5C.
3. The BMS offers voltage, current, temperature protection, and alarm functions.
4. The BMS unit measures current, voltage, cell temperature, and ambient temperature.
5. Compact stack design, with each module providing 5kWh at 102.4V.
6. Easy installation with swappable stacks, eliminating the need for cable connections between each module.
7. System capacity is available up to a maximum of 25.6kWh.
8. The battery cell is certified with IEC/UL standards.
9. The design life is no less than 15 years.
10. Compatible with major inverter brands in the market.

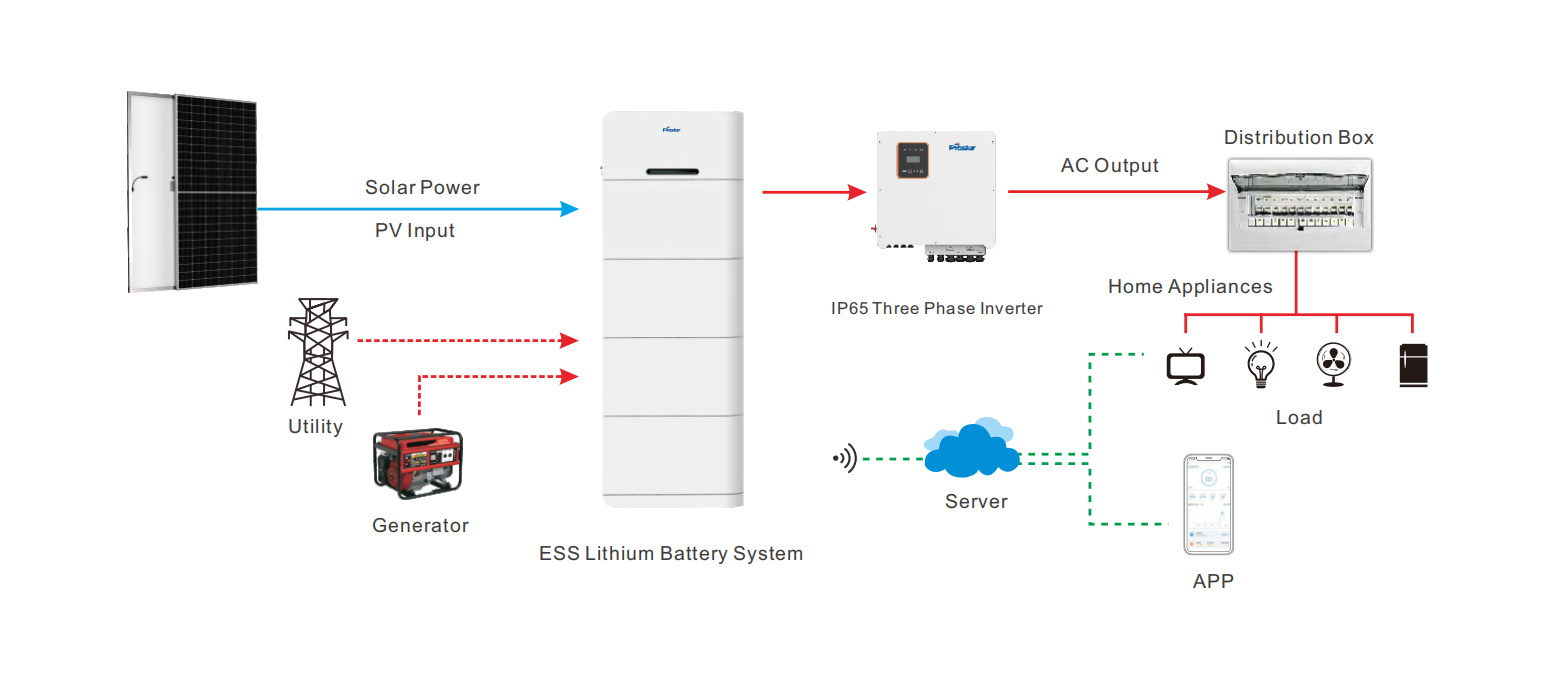

Application Diagram
Key words:
- Wall Stand Lithium Battery System
- Stand Lithium Battery
- Lithium Battery System
- Wall-mounted Stand Lithium Battery
- Wall Stand Lithium Battery Pack

MODEL	PLS-5HV2	PLS-5HV3	PLS-5HV4	PLS-5HV5
Electrical Characteristics
Rated Voltage (VDC)	204.8	307.2	409.6	512
Cell Combination (SxP)	32S1P×2S	32S1P×3S	32S1P×4S	32S1P×6S
Rated Capacity (Ah)	50
Energy Storage (kWh)	10.24	15.36	20.48	25.6
Cycle Life	6000 cycles @80% DOD, 0.5C
Charge / Discharge Standard
Charge Voltage (V)	224	336	448	560
Max. Charge Current (A)	50
Max. Discharge Current (A)	50
Discharge Cut-off Voltage (VDC)	172.8	259.2	345.6	432
Charge Cut-off Voltage (VDC)	230.4	345.6	460.8	584
Environment
Charge Temperature	0°C to 50°C @60±25% Relative Humidity
Discharge Temperature	-20°C to 50°C @60±25% Relative Humidity
Storage Temperature	-20°C to 50°C @60±25% Relative Humidity
Mechanical
Protection Grade	IP65
Cell	LiFePO4
Case Material	Metal
Installation	Stand Stack
Pack Dimension LxWxH (mm)	630x185x955	630x185x1300	630x185x1650	630x185x2000
Package Dimension LxWxH (mm)	740x295x400x3	740x295x400x4	740x295x400x5	740x295x400x6
Net Weight (Kg)	14+49x2	14+49x3	14+49x4	14+49x5
Gross Weight (Kg)	21+53x2	21+53x3	21+53x4	21+53x5
Communication
Protocol (Optional)	CANBus/RS485/RS232
Monitoring (Optional)	Bluetooth/WLAN
Certificates
Pack	UN38.3, MSDS
Cell	UN38.3, MSDS, IEC62619, CE, UL1973, UL2054

Note: Product specifications are subject to change without notice.
