Mobile Lithium Battery Pack 5.12kWh-15.56kWh

PLM Series Mobile Lithium Battery Pack | 5.12kWh / 10.5kWh / 14.34kWh / 15.56kWh | Protection Grade: IP20

Classify：

Lithium Battery Storage System

Lithium Battery Pack

keywords：

Mobile Lithium Battery Pack

Mobile Lithium Battery

Lithium-ion Battery

Mobile Battery Pack

Rechargeable Battery Pack

File Download：

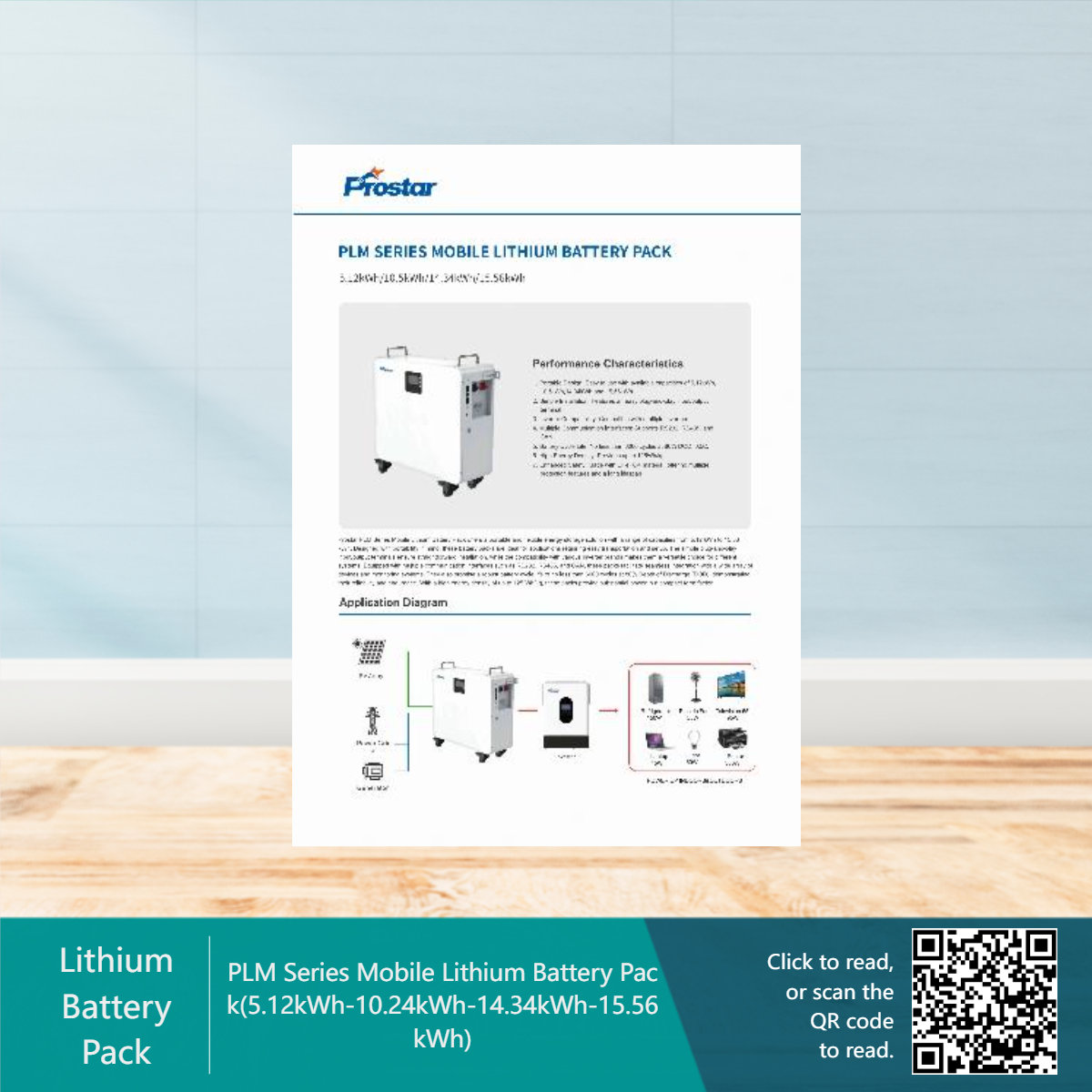

PLM Series Mobile Lithium Battery Pack (5.12kWh-10.24kWh-14.34kWh-15.56kWh).pdf

Consulting Hotline：

+86-757-81285488

Product Description
Technical Specification
Applied Range
Product Catalogue

- Brand: Prostar
- Commodity name: Mobile Lithium Battery Pack 5.12kWh-15.56kWh
PLM Series Mobile Lithium Battery Pack | 5.12kWh / 10.5kWh / 14.34kWh / 15.56kWh | Protection Grade: IP20

Prostar PLM Series Mobile Lithium Battery Pack offers a portable and flexible energy storage solution with a range of capacities from 5.12 kWh to 15.56kWh. Designed with portability in mind, these battery packs are ideal for applications requiring easy transportation and setup. The simple plug-and-play input/output terminals ensure straightforward installation, while the compatibility with various inverter brands makes them a versatile choice for different systems. Equipped with multiple communication interfaces such as RS232, RS485, and CAN, these packs facilitate seamless integration with a wide array of devices and monitoring systems. They also promise a robust battery cycle life of no less than 6000 cycles at 80% Depth of Discharge (DOD), demonstrating their reliability and endurance. With a high energy density of up to 125 Wh/kg, these packs provide substantial power in a compact form factor.

The PLM Series is crafted with LiFePO4 material, which is renowned for its enhanced safety features and longevity. This chemistry offers multiple layers of protection, ensuring the battery pack's safe operation and extending its service life. The high energy density and advanced safety features make the PLM Series an excellent choice for mobile energy storage needs, whether for recreational vehicles, portable power stations, or backup power solutions in remote locations.

Features Introduction

1. Portable Design: It is easy to use with available capacities of 5.12 kWh, 10.5 kWh, 14.34kWh and 15.56kWh.
2. Simple Installation: It features an easy plug-and-play input/output terminal.
3. Inverter Compatibility: It is compatible with multiple inverter brands.
4. Multiple Communication Interfaces: It supports RS232, RS485, and CAN interfaces.
5. Battery Cycle Life: It guarantees no less than 6000 cycles at 80% Depth of Discharge (DOD), 0.5C.
6. High Energy Density: It provides up to 125 Wh/kg.
7. Enhanced Safety: Made with LiFePO4 material, it offers multiple protection features and a long lifespan.

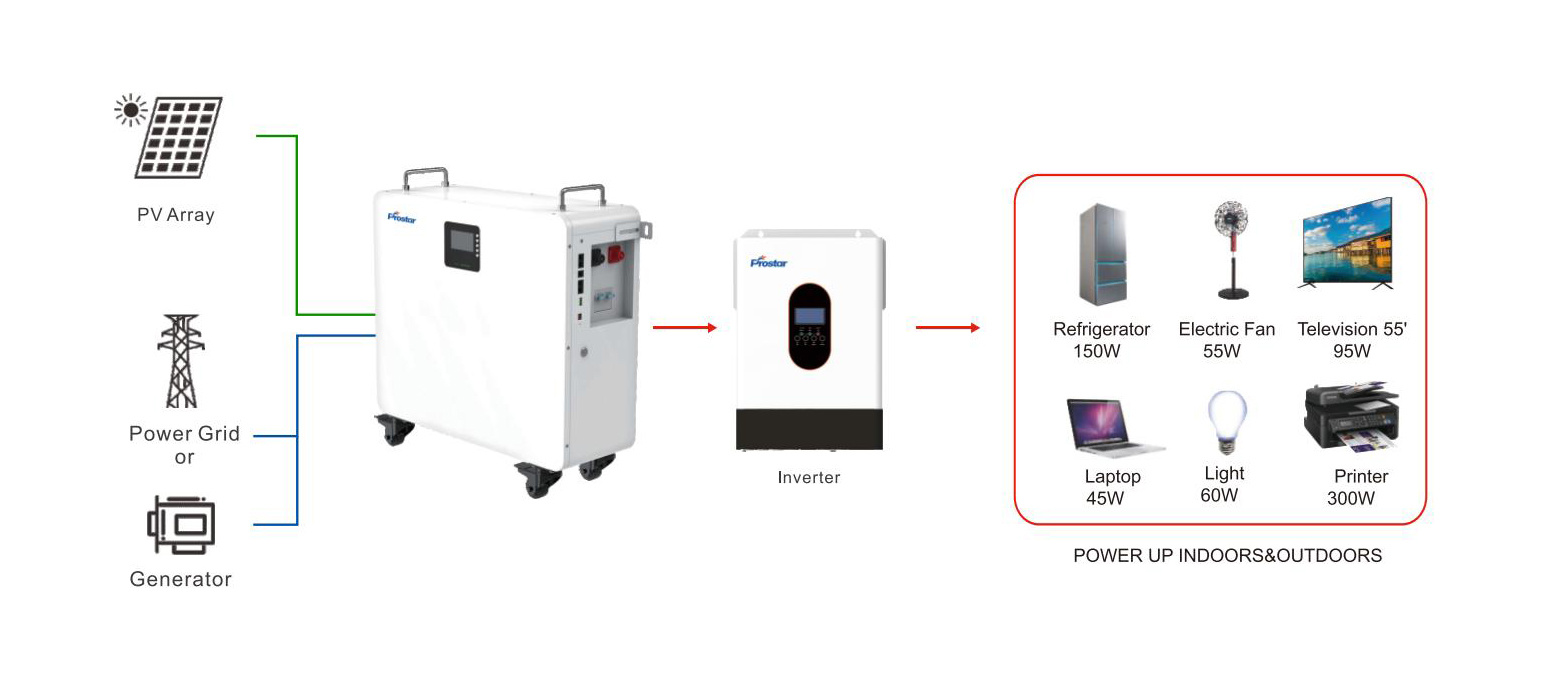

Application Diagram
Key words:
- Modular Stacked Lithium Battery System
- Stacked Lithium Battery System
- Stacked LiFePO4 Lithium Battery
- Lifepo4 Stack Battery
- Lithium Battery System

MODEL	PLM51100	PLM51205	PLM51280	PLM51304
Electrical Characteristics
Rated Voltage (VDC)	51.2
Cell Combination (SxP)	16
Rated Capacity (Ah)	100	205	280	304
Energy Storage (kWh)	5.12	10.5	14.34	15.56
Cycle Life	10000 cycles @ 80% DOD, 0.5C
Charge / Discharge Standard
Charge Voltage (V)	56
Max. Charge Current (A)	100 (Optional 150/200A for 205/280Ah Pack)
Max. Discharge Current (A)	100 (Optional 150/200A for 205/280Ah Pack)
Discharge Cut-off Voltage (VDC)	43.2
Charge Cut-off Voltage (VDC)	58.4
Environment
Charge Temperature	0°C to 50°C @ 60% ± 25% Relative Humidity
Discharge Temperature	-20°C to 50°C @ 60% ± 25% Relative Humidity
Storage Temperature	-20°C to 50°C @ 60% ± 25% Relative Humidity
Mechanical
Protection Class	IP20
Material System	LiFePO4
Case Material	Metal
Case Type	Mobile Power Pack
Pack Dimension LxWxH (mm)	612x370x190	622x520x221	766x520x221	766x530x221
Package Dimension LxWxH (mm)	712x535x298	722x695x328	866x695x328	866x695x328
Net Weight (Kg)	55	92	115	125.5
Gross Weight (Kg)	60	112	135	145
Communication
Protocol (Optional)	CANBus/RS485/RS232
Monitoring (Optional)	Bluetooth/WLAN
Certificates
Pack	UN38.3, MSDS
Cell	UN38.3, MSDS, IEC62619, CE, UL1973, UL2054

Note: Product specifications are subject to change without notice.

Solar and wind energy systems

Home energy storage

Electric vehicles

Grid regulation

Microgrids and off-grid systems

Industrial backup power supplies

UPS and data centers

Telecommunication base stations
