Wall Mounted Lithium Battery Pack 2.56kWh-15.56kWh

PLW PRO Series Wall Mounted Lithium Battery Pack | 2.56kWh / 5.12kWh / 10.24kWh / 15.56kWh | Protection Grade: IP20

Classify：

Lithium Battery Storage System

Lithium Battery Pack

keywords：

Wall Mounted Lithium Battery Pack

Lithium Battery Pack

Wall-mounted Battery

LiFePO4 Lithium Ion Batteries

Wall-mounted Energy Storage Battery

File Download：

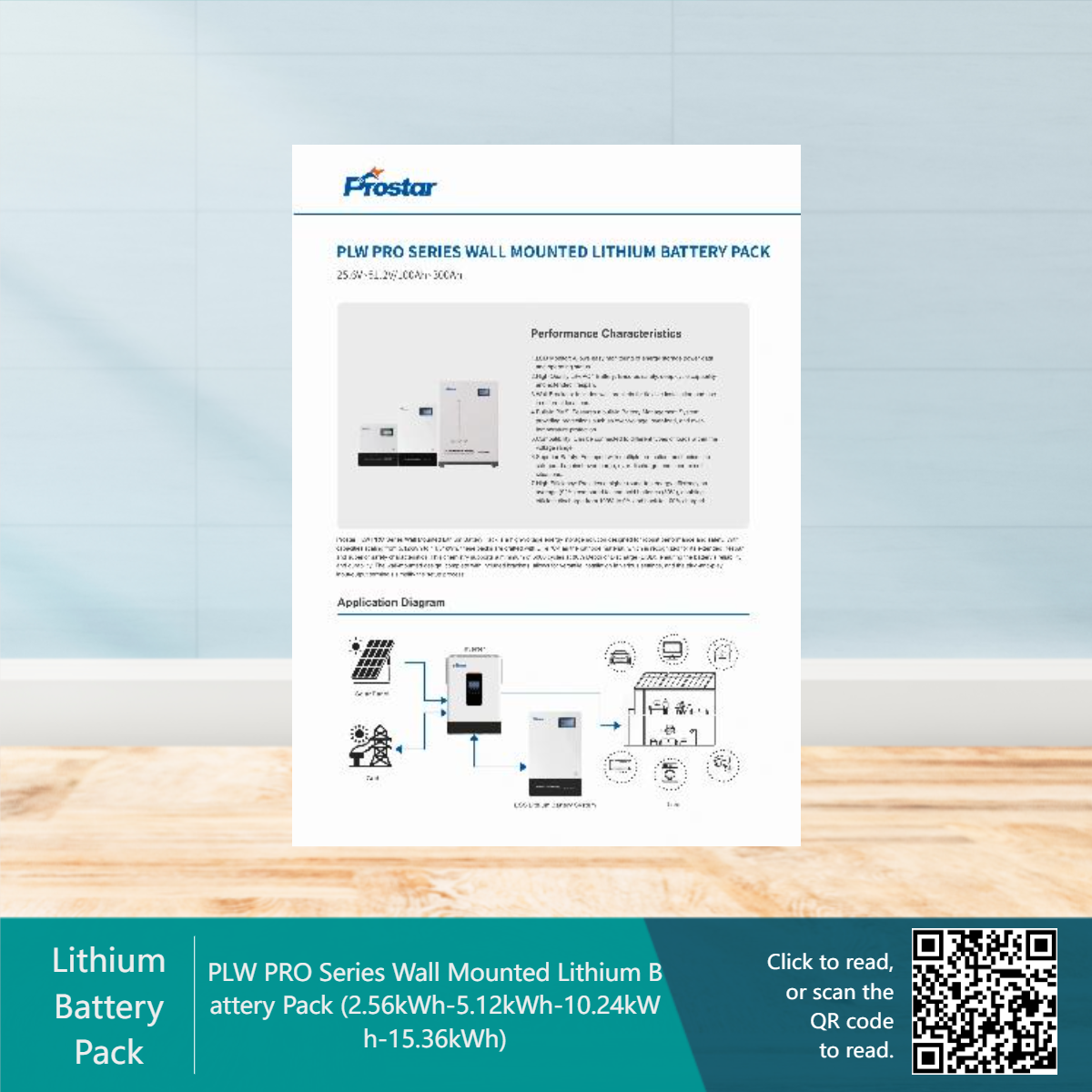

PLW PRO Series Wall Mounted Lithium Battery Pack (2.56kWh-5.12kWh-10.24kWh-15.36kWh).pdf

Consulting Hotline：

+86-757-81285488

Product Description
Technical Specification
Applied Range
Product Catalogue

- Brand: Prostar
- Commodity name: Wall Mounted Lithium Battery Pack 2.56kWh-15.56kWh
PLW PRO Series Wall Mounted Lithium Battery Pack | 2.56kWh / 5.12kWh / 10.24kWh / 15.56kWh | Protection Grade: IP20

Prostar PLW PRO Series Wall Mounted Lithium Battery Pack is a high-voltage energy storage solution designed for robust performance and safety. With capacities scaling from 2.56kWh to 15.56kWh, these packs are crafted with LiFePO4 as the cathode material, which is recognized for its extended lifespan and superior safety characteristics. This chemistry supports a minimum of 6000 cycles at 80% Depth of Discharge (DOD), ensuring the battery's reliability and durability. The wall-mounted design, complete with included brackets, allows for versatile installation in various settings, and the plug-and-play input/output terminals simplify the setup process.

A key feature of the PLW PRO Series is the integrated Battery Management System (BMS), which includes multiple protection mechanisms to prevent overcharge, over-discharge, and short circuits. This smart system not only enhances safety but also contributes to the battery's longevity by managing the charge and discharge states effectively. The BMS also supports capacity and power expansion through parallel connections, USB upgrades, and optional WiFi upgrades, providing flexibility to scale the system as needed.

Moreover, these battery packs are compatible with a wide range of loads within their voltage range, making them suitable for diverse applications. The LCD monitor offers easy monitoring of energy storage data and operating status, providing users with real-time insights into the battery's performance. With high round-trip energy efficiency, averaging at 92%, these battery packs outperform traditional lead-acid batteries, which typically have efficiencies around 80%. This efficiency, combined with the eco-friendly nature of the modules, positions the PLW PRO Series as a leading choice for sustainable and efficient energy storage.

Features Introduction

1. LCD Monitor: Allows for easy monitoring of energy storage power data and operating status.
2. High-Quality LiFePO4 Battery: Ensures safety, deep cycle capability, and an extended lifespan.
3. Wall Brackets: Included for flexible installation and use in various locations.
4. Built-in BMS: Features a built-in Battery Management System, providing protections such as over-voltage, over-load, and over-temperature protection.
5. Compatibility: Can be connected to different types of loads within its voltage range.
6. Superior Safety: Equipped with multiple protection mechanisms to safeguard against overcharge, over-discharge, and short circuit situations.
7. High Efficiency: Provides a higher round-trip energy efficiency on average (92%) compared to lead-acid batteries (80%), enabling efficient discharge from 100% to 0% and back to 100% charged.

Application Diagram
Key words:
- Wall Mounted Lithium Battery Pack
- Lithium Battery Pack
- Wall-mounted Battery
- LiFePO4 Lithium Ion Batteries
- Wall-mounted Energy Storage Battery

Model		PLW-Pro24100	PLW-Pro24200	PLW-Pro48100	PLW-Pro48200	PLW-Pro48300
Nominal Capacity		100Ah	200Ah	100Ah	200Ah	300Ah
Electrical Parameters (25°C)	Rated Voltage	25.6V	25.6V	51.2V	51.2V	51.2V
	Rated Capacity (C5)	100Ah@25°C	200Ah@25°C	100Ah@25°C	200Ah@25°C	300Ah@25°C
	Energy	2560Wh	5120Wh	5120Wh	10240Wh	15360Wh
	Months Self Discharge	<3%
	Charge Efficiency	99.5%@ 0.2C
	Discharge Efficiency	97-99%@ 1C		96-99%@ 1C
Terminal Diameter		M10		M8
Internal Resistance (Fully Charged, 25°C)		<10mQ		<200mQ
Cycle Life		>6000 cycles @ 0.2C 100%D.O.D
Capacity Affected By Temperature	40°C	101%
	25°C	100%
	0°C	90%
	-10°C	75%
Nominal Operating Temperature		25°C± 3°C (77°F± 5°F)
Operating Temperature Range	Discharge	-20°C~60°C (-4°F ~ 140°F)
	Charge	0°C~45°C (32°F ~ 113°F)
	Storage	0°C~40°C (32°F ~ 104°F)
Water Dust Resistance		IP50
Charge Voltage		28V		57V
Standard Charge Mode (25°C±2°C, <75%RH)		0.2CA Constant Current to 28V, then Constant Voltage 28V until the current drops to 0.02CA, rest for 30 minutes before use		0.2CA Constant Current to 57V, then Constant Voltage 57V until the current drops to 0.02CA, rest for 30 minutes before use
Charge Current		20A	40A	20A	40A		60A
Maximum Charge Current		50A	100A		200A
Charge Cut oﬀ Voltage		28V		57V
Continuous Discharge Current		100A
Maximum Pulse Current		150A(<2s)		150A (<1S)
Discharge Cut Oﬀ Voltage		24V		46V
Communicate Protocol (Optional)		(Default none) RS485/RS232/CAN		RS485/RS232/CAN
SOC (Optional)		(Default none) Bluetooth		Screen/LED/PC Software
Application Connection		1 string 1 parallel
Mechanical	Cells	8 Strings		16 Strings
	Container	Metal
Dimensions	Length	370mm	370mm	370mm	500mm	588mm
	Width	160mm	160mm	160mm	170mm	260mm
	Height	400mm	600mm	600mm	850mm	852mm
Net Weight		24kg	46.8kg	46.8kg	83kg	102kg

Note: Product specifications are subject to change without notice.

Solar and wind energy systems

Home energy storage

Electric vehicles

Grid regulation

Microgrids and off-grid systems

Industrial backup power supplies

UPS and data centers

Telecommunication base stations
