Rack Mounted Lithium Battery Pack 5.12kWh-10.24kWh

PLR-S Series Rack Mounted Lithium Battery Pack | 5.12kWh/10.24kWh | Protection Grade: IP20

Classify：

Lithium Battery Storage System

Lithium Battery Pack

keywords：

Rack Mounted Lithium Battery Pack

Lithium Battery Pack

Rack-Mounted Lithium Battery Pack

Rack Lifepo4 Battery Pack

Lithium Ion Battery Pack

File Download：

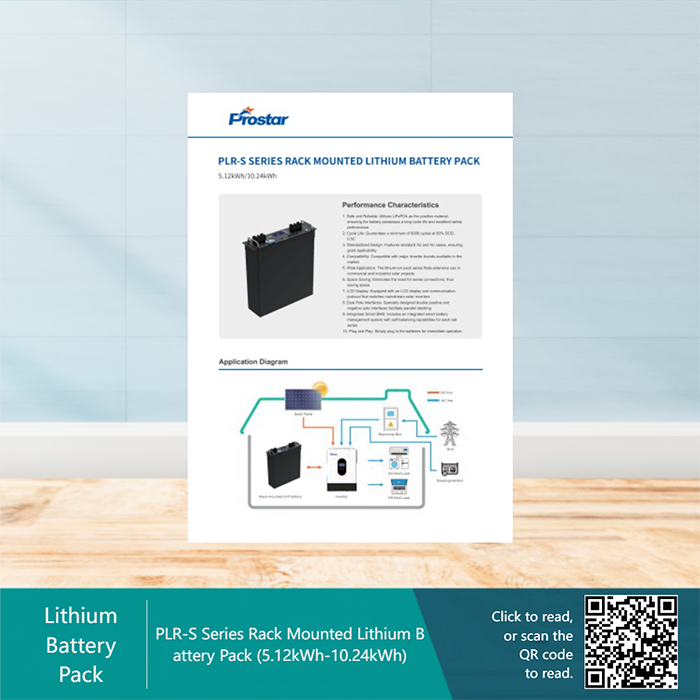

PLR-S Series Rack Mounted Lithium Battery Pack (5.12kWh-10.24kWh).pdf

Consulting Hotline：

+86-757-81285488

Product Description
Technical Specification
Applied Range
Product Catalogue

- Brand: Prostar
- Commodity name: Rack Mounted Lithium Battery Pack 5.12kWh-10.24kWh
PLR-S Series Rack Mounted Lithium Battery Pack | 5.12kWh/10.24kWh | Protection Grade: IP20

Prostar PLR-S Series Rack Mounted Lithium Battery Pack is a high-performance energy storage solution designed for a range of applications. With capacities of 5.12kWh and 10.24kWh, these battery packs are built using LiFePO4 as the positive electrode material, which is known for its long cycle life and excellent safety performance, ensuring reliable and stable energy storage. They are designed to provide a minimum of 6000 cycles at 80% Depth of Discharge (DOD), demonstrating their durability and longevity in various energy storage applications.

These battery packs are compatible with major inverter brands, making them a versatile choice for commercial and industrial solar projects. They feature a standardized design with 3U and 4U enclosures, which ensures easy integration into existing systems. The inclusion of an LCD display and communication protocol that matches mainstream solar inverters allows for seamless monitoring and control. The dual pole interfaces are specially designed to facilitate parallel stacking, providing flexibility in system expansion. An integrated smart Battery Management System (BMS) with self-balancing capabilities for each cell series enhances the overall safety and efficiency of the battery packs. The plug-and-play feature ensures that these battery packs can be easily installed and operational with minimal setup time.

Features Introduction

1. Safe and Reliable: Utilizes LiFePO4 as the positive electrode material, ensuring the battery has a long cycle life and excellent safety performance.
2. Cycle Life: Guarantees a minimum of 6000 cycles at 80% Depth of Discharge (DOD), 0.5C.
3. Standardized Design: Features standard 3U and 4U enclosures, ensuring good applicability.
4. Compatibility: Compatible with major inverter brands available on the market.
5. Wide Application: The lithium-ion battery pack series finds extensive use in commercial and industrial solar projects.
6. Space Saving: Eliminates the need for series connections, thus saving space.
7. LCD Display: Equipped with an LCD display and a communication protocol that matches mainstream solar inverters.
8. Dual Pole Interfaces: Specially designed double positive and negative pole interfaces facilitate parallel stacking.
9. Integrated Smart BMS: Includes an integrated smart battery management system with self-balancing capabilities for each cell series.
10. Plug and Play: Simply plug in the batteries for immediate operation.

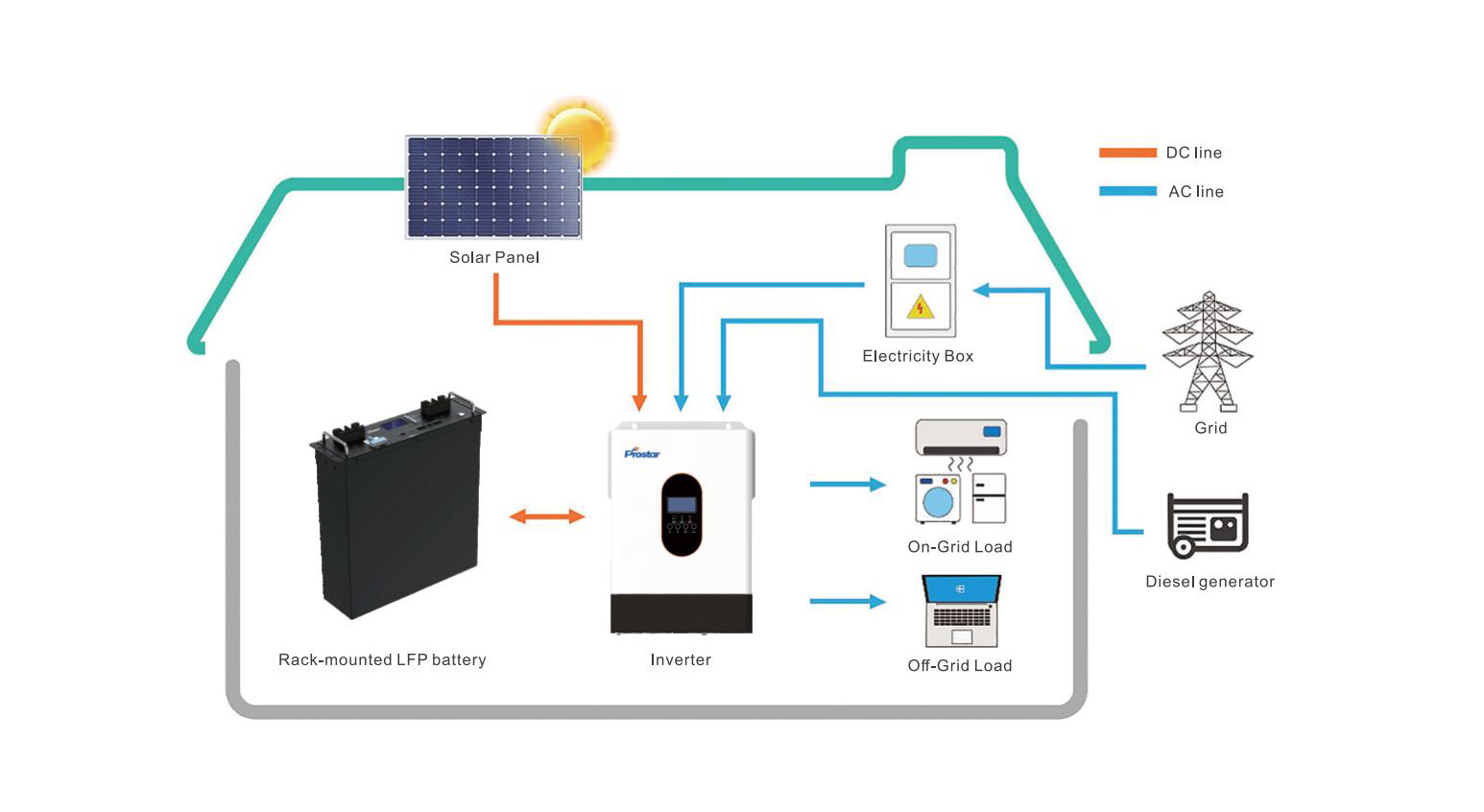

Application Diagram
Key words:
- Rack Mounted Lithium Battery Pack
- Lithium Battery Pack
- Rack-Mounted Lithium Battery Pack
- Rack Lifepo4 Battery Pack
- Lithium Ion Battery Pack

MODEL	PLR-S-51100	PLR-S-51200
Electrical Characteristics
Rated Voltage (VDC)	51.2
Cell Combination	16S1P	16S2P
Rated Capacity (Ah)	100	200
Energy Storage (kWh)	5.12	10.24
Cycle Life	6000 cycles @80% DOD, 0.5C
Charge / Discharge Standard
Charge Voltage (V)	56
Max. Charge Current (A)	100 (Optional 150/200A for 200Ah pack)
Max. Discharge Current (A)	100 (Optional 150/200A for 200Ah pack)
Discharge Cut-off Voltage (VDC)	43.2
Charge Cut-off Voltage (VDC)	58.4
Environment
Charge Temperature	0°C to 50°C @60±25% Relative Humidity
Discharge Temperature	-20°C to 50°C @60±25% Relative Humidity
Storage Temperature	-20°C to 50°C @60±25% Relative Humidity
Mechanical
Protection Grade	IP20
Material System	LiFePO4
Case Material	Metal
Installation	Rack Mount
Pack Dimension LxWxH (mm)	480×442×133 (3U)	680×442×178 (4U)
Package Dimension LxWxH (mm)	580×530×210	820×625×310
Net Weight (Kg)	44	88
Gross Weight (Kg)	49	97
Communication
Protocol (Optional)	CANBus/RS485/RS232
Certificates
Pack	UN38.3, MSDS, IEC62619, CE-EMC, UL1973
Cell	UN38.3, MSDS, IEC62619, CE, UL1973, UL2054

Note: Product specifications are subject to change without notice.

Solar and wind energy systems

Home energy storage

Electric vehicles

Grid regulation

Microgrids and off-grid systems

Industrial backup power supplies

UPS and data centers

Telecommunication base stations
