Off Grid Solar Inverter 4.2kW-6.2kW (Parallel)

Classify：

Inverter

Off Grid Solar Inverter

keywords：

Solar Inverter

Hybrid Solar Inverter

Off Grid Hybrid Solar Inverter

Off Grid Solar Inverter

Off Grid Inverter

File Download：

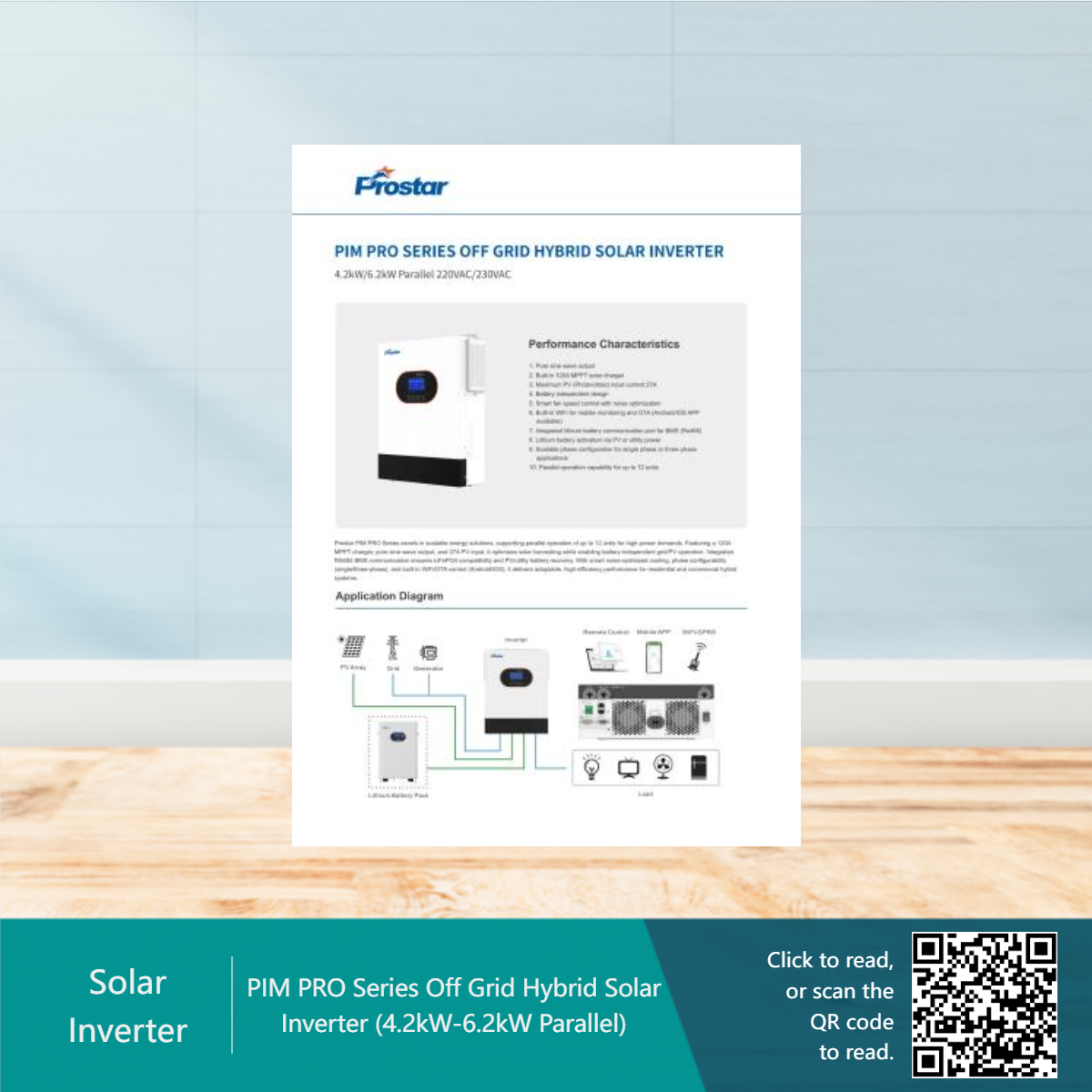

PIM PRO Series Off Grid Hybrid Solar Inverter (4.2kW-6.2kW Parallel).pdf

Consulting Hotline：

+86-757-81285488

Product Description
Technical Specification
Applied Range
Product Catalogue

- Brand: Prostar
- Commodity name: Off Grid Solar Inverter 4.2kW-6.2kW (Parallel)
PIM PRO Series Off Grid Hybrid Solar Inverter | Capacity: 4.2kW / 6.2kW | PV Array MPPT Voltage Range: 60VDC-450VDC | Phase: Single Phase | Input/Output Voltage: 220VAC/230VAC/240VAC | Frequency: 50Hz/60Hz | Parallel: 12 Units

Prostar PIM PRO Series excels in scalable energy solutions, supporting parallel operation of up to 12 units for high-power demands. Featuring a 120A MPPT charger, pure sine wave output, and 27A PV input, it optimizes solar harvesting while enabling battery-independent grid/PV operation. Integrated RS485 BMS communication ensures LiFePO4 compatibility and PV/utility battery recovery. With smart noise-optimized cooling, phase configurability (single/three-phase), and built-in WiFi/OTA control (Android/iOS), it delivers adaptable, high-efficiency performance for residential and commercial hybrid systems.

Features Introduction

1. Pure sine wave output
2. Built-in 120A MPPT solar charger
3. Maximum PV (Photovoltaic) input current 27A
4. Battery independent design
5. Smart fan speed control with noise optimization
6. Built-in WiFi for mobile monitoring and OTA (Android/IOS APP available)
7. Integrated lithium battery communication port for BMS (Rs485)
8. Lithium battery activation via PV or utility power
9. Scalable phase configuration for single phase or three phase applications
10. Parallel operation capability for up to 12 units

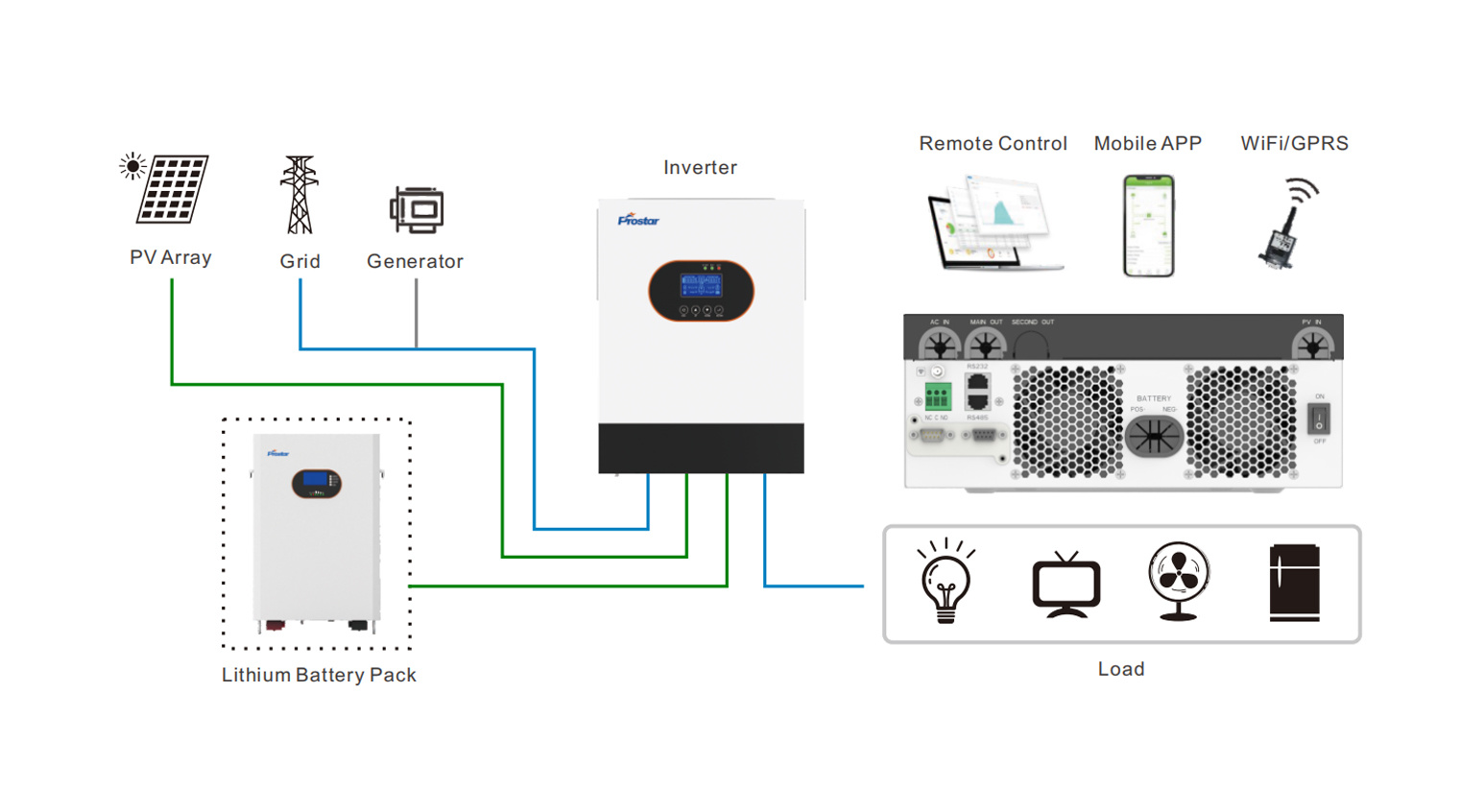

Application Diagram
Key words:
- Solar Inverter
- Hybrid Solar Inverter
- Off Grid Hybrid Solar Inverter
- Off Grid Solar Inverter
- Off Grid Inverter

MODEL	PIM4.2K-48PL-PRO	PIM6.2K-48PL-PRO
Rated Power	4200VA/4200W	6200VA/6200W
Phase	1-phase in/1-phase out
Parallel Function	Yes,max.12 units
Product Dimension, D×W×H (mm)	418×300×122
Packing Dimension, D×W×H (mm)	495×395×215
Net Weight (Kg)	9
INPUT
Voltage	220/230VAC
Selectable Voltage Range	170-280VAC (PC), 90-280VAC (Appliances)
Frequency Range	50Hz/60Hz (Auto Sensing)
OUTPUT
Nominal Voltage	220/230/240VAC (Settable)
Surge Power	8400VA	12400VA
Frequency	50Hz/60Hz
Peak Efficiency (PV to INV)	96%
Peak Efficiency (Battery to INV)	93%
Transfer Time	10ms (UPS), 20ms (Appliances)
Waveform	Pure Sine Wave
Overload Protection	60s@105%~110% Load ,10s@110%~140% Load, 5s@≥140 Load
BATTERY
Battery Voltage	48VDC
Floating Charge Voltage	54VDC
Overcharge Protection	63VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type	MPPT
Maximum PV Array Power	5500W	6500W
Maximum PV Array Open Circuit Voltage	500VDC
MPPT Operating Voltage Range	60VDC~450VDC
Maximum PV Input Current	27A
Maximum Solar Charge Current	100A	120A
Maximum AC Charge Current	80A	100A
Maximum Charge Current (PV+AC)	100A	120A
GENERAL
Communication Interface	RS232/RS485 (BMS)/Bluetooth/WiFi/Dry-contact
Lithium Battery Activation	YES (By PV or Utility)
ENVIRONMENT
Operating Temperature Range	-10℃~50℃
Storage Temperature	-15℃~60℃
Humidity	5%~95% Relative Humidity (Non-condensing)

Note: Product specifications are subject to change without notice.

Off-grid Solar System

Household Appliances

Office Equipment

Outdoor Lighting

Communication Base Station

Monitoring Equipment

Island

Remote Mountainous Area
