Off Grid Solar Inverter 5.5kW-6.2kW (Parallel)

Classify：

Inverter

Off Grid Solar Inverter

keywords：

Solar Inverter

Hybrid Solar Inverter

Off Grid Hybrid Solar Inverter

Off Grid Solar Inverter

Off Grid Inverter

File Download：

PIM Series Off Grid Hybrid Solar Inverter (5.5kW-6.2kW Parallel).pdf

Consulting Hotline：

+86-757-81285488

Product Description
Technical Specification
Applied Range
Product Catalogue

- Brand: Prostar
- Commodity name: Off Grid Solar Inverter 5.5kW-6.2kW (Parallel)
PIM Series Off Grid Hybrid Solar Inverter | Capacity: 5.5kW / 6.2kW | PV Array MPPT Voltage Range: 60VDC-450VDC | Phase: Single Phase | Input/Output Voltage: 220VAC/230VAC | Frequency: 50Hz/60Hz

Prostar PIM series off-grid hybrid solar inverter is a multifunctional device that effectively integrates the functions of an inverter, MPPT solar charger, and battery charger. It is designed to deliver uninterrupted power in a compact and portable form factor. The inverter features a user-friendly LCD display, making it easy for users to configure settings. These settings include battery charging current, AC/Solar charger port, and input voltage acceptance, all of which can be tailored to fit various applications.

Features Introduction

1. Pure sine wave output.
2. Power factor of 1.0.
3. Wide PV input voltage range: up to 500Vdc.
4. Built-in 100A MPPT solar controller.
5. Capable of operating without a battery.
6. Optional Wi-Fi monitoring available.
7. LiFePO4 battery compatibility via RS485.
8. Supports multiple output priorities: Utility Priority, Solar Priority, Solar > Battery > Utility, Solar > Utility > Battery.
9. Battery equalization function to optimize battery performance and extend its lifecycle.
10. Parallel operation supports up to 12 units for both single-phase and three-phase systems.

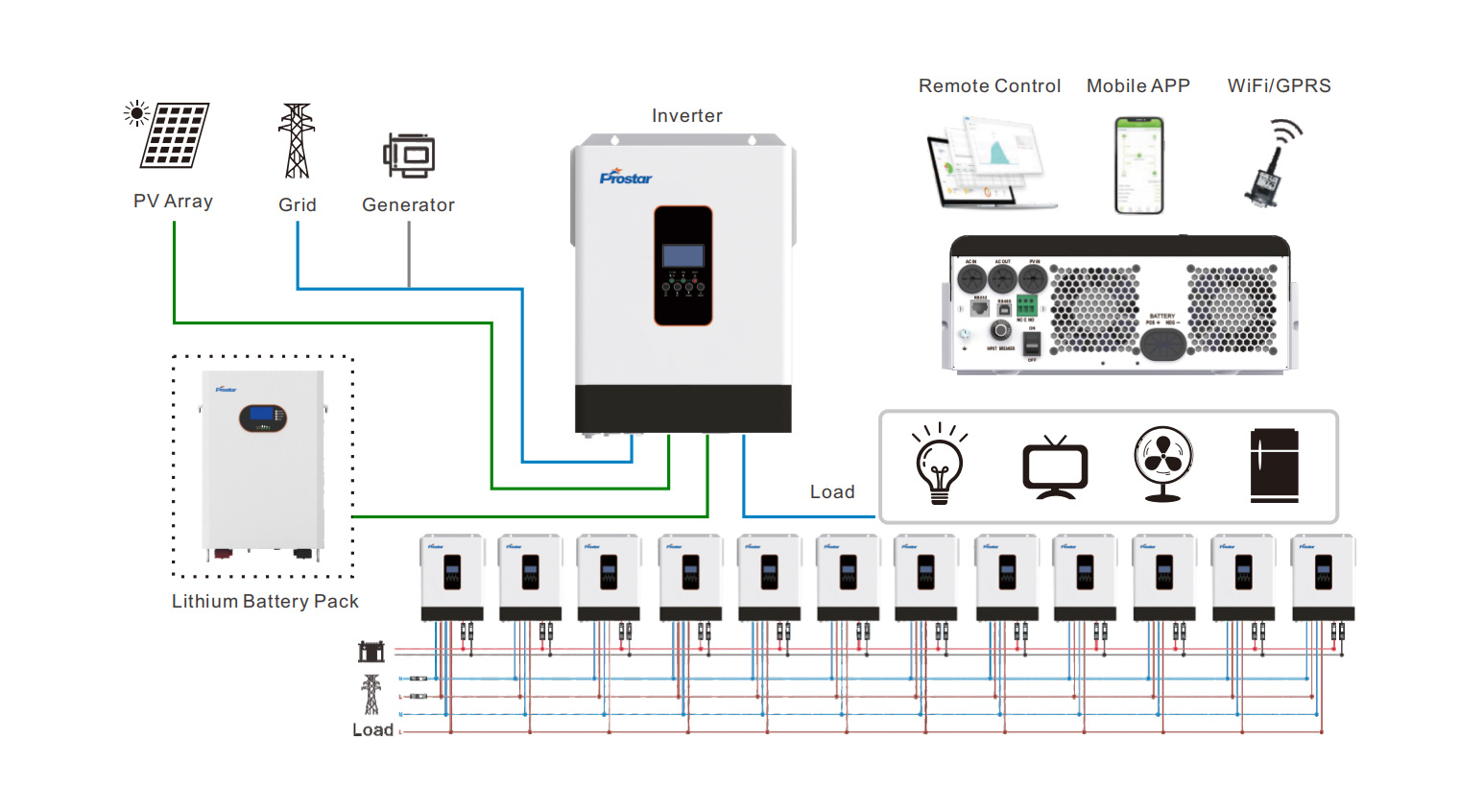

Application Diagram
Key words:
- Solar Inverter
- Hybrid Solar Inverter
- Off Grid Hybrid Solar Inverter
- Off Grid Solar Inverter
- Off Grid Inverter

MODEL	PIM5.5K-48PL	PIM6.2K-48PL
Capacity	5.5KVA/5.5KW	6.2KVA/6.2KW
Dimensions (DxWxH mm)	448x295x120	450x300x130
Package Dimensions (DxWxH mm)	560x375x190	540x390x210
Net Weight (Kg)	10	12
Parallel Capability	Yes, 12 Units
Lithium Battery Activation	No	Yes (By PV or Utility)
Lithium Battery Communication	Yes (RS485)
INPUT
Nominal Voltage	220/230VAC
Acceptable Voltage Range	170-280VAC (For Personal Computer); 90-280VAC (For Home Appliances)
Frequency	50/60 Hz (Auto Sensing)
OUTPUT
Nominal Voltage	220/230VAC±5%
Surge Power	11000VA
Frequency	50/60Hz
Waveform	Pure Sine Wave
Transfer Time	10ms (For Personal Computer); 20ms (For Home Appliances)
Peak Efficiency (PV to INV)	96%	94%
Peak Efficiency (Battery to INV)	93%	92%
Overload Protection	5s@>150% Load; 10s@110%-150% Load
Crest Factor	3:1
Admissible Power Factor	0.6-1 (Inductive or Capacitive)
BATTERY
Battery Voltage	48VDC
Floating Charge Voltage	54VDC
Over Charge Protection	63VDC
Charging Method	CC/CV
SOLARCHARGER & CHARGER
Solar Charger Type	MPPT
Max. PV Array Power	5500W	6500W
Max. PV Array Open Circuit Voltage	500VDC
PV Array MPPT Voltage Range	60VDC-450VDC
Max. Solar Input Current	18A	27A
Max. Solar Charge Current	100A	120A
Max. AC Charge Current	60A	80A
Max. Charge Current	100A	120A
COMMUNICATION
Communication Interface	RS232/RS485/Dry Contact
ENVIRONMENT
Operating Temperature Range	-10°C to 50°C
Storage Temperature	-15°C to 50°C
Humidity	5% to 95% Relative Humidity (Non-condensing)

Note: Product specifications are subject to change without notice.

Off-grid Solar System

Household Appliances

Office Equipment

Outdoor Lighting

Communication Base Station

Monitoring Equipment

Island

Remote Mountainous Area
