Off Grid Solar Inverter 4.2kW-6.2kW (Dual Output)

Classify：

Inverter

Off Grid Solar Inverter

keywords：

Solar Inverter

Hybrid Solar Inverter

Off Grid Hybrid Solar Inverter

Off Grid Solar Inverter

Off Grid Inverter

File Download：

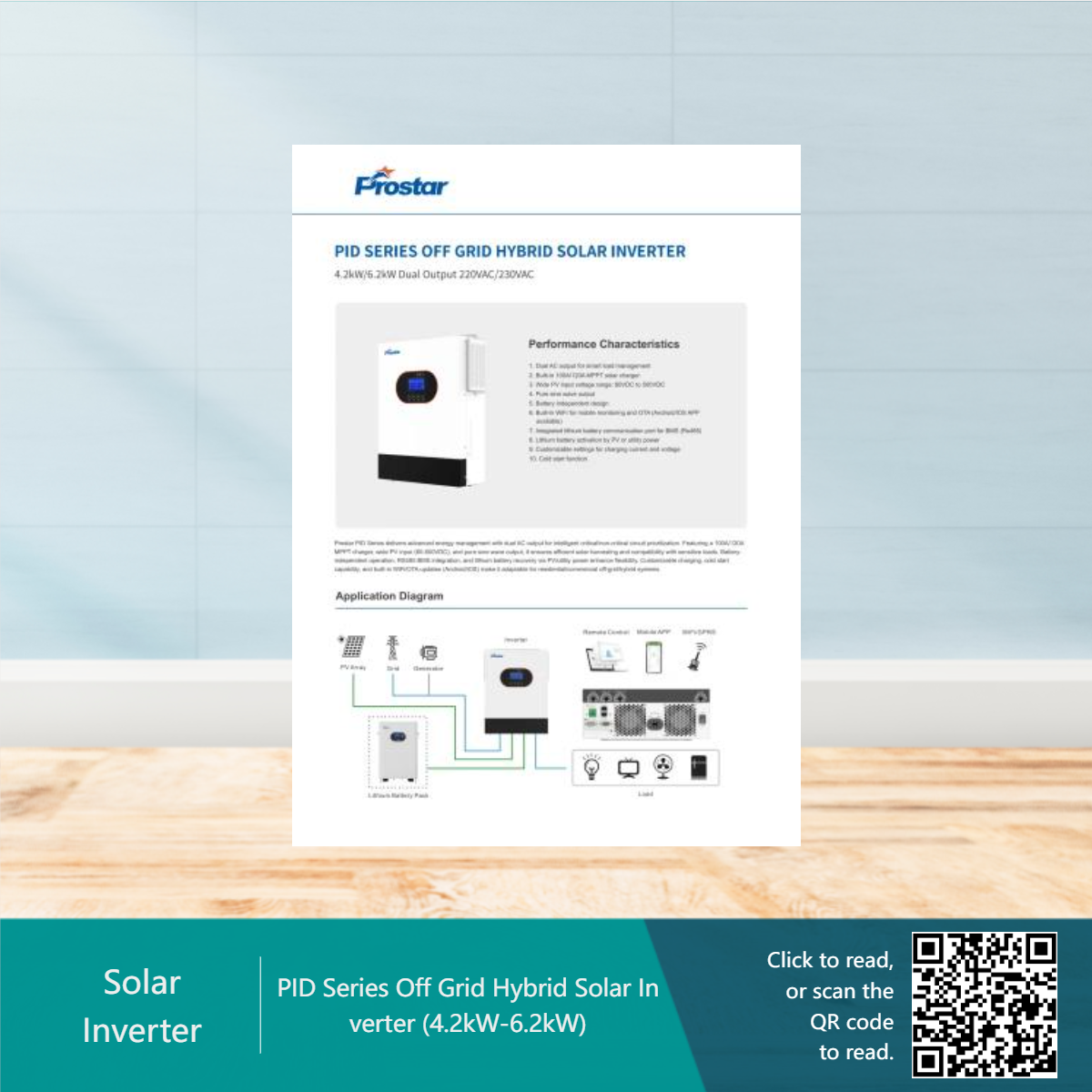

PID Series Off Grid Hybrid Solar Inverter (4.2kW-6.2kW).pdf

Consulting Hotline：

+86-757-81285488

Product Description
Technical Specification
Applied Range
Product Catalogue

- Brand: Prostar
- Commodity name: Off Grid Solar Inverter 4.2kW-6.2kW (Dual Output)
PID Series Off Grid Hybrid Solar Inverter | Capacity: 4.2kW / 6.2kW | PV Array MPPT Voltage Range: 60VDC-450VDC | Phase: Single Phase | Input/Output Voltage: 220VAC/230VAC/240VAC | Frequency: 50Hz/60Hz

Prostar PID Series delivers advanced energy management with dual AC output for intelligent critical/non-critical circuit prioritization. Featuring a 120A MPPT charger, wide PV input (60-500VDC), and pure sine wave output, it ensures efficient solar harvesting and compatibility with sensitive loads. Battery-independent operation, RS485 BMS integration, and lithium battery recovery via PV/utility power enhance flexibility. Customizable charging, cold start capability, and built-in WiFi/OTA updates (Android/iOS) make it adaptable for residential/commercial off-grid/hybrid systems.

Features Introduction

1. Dual AC output for smart load management
2. Built-in 120A MPPT solar charger.
3. Wide PV input voltage range: 60VDC to 500VDC
4. Pure sine wave output
5. Battery independent design
6. Built-in WiFi for mobile monitoring and OTA (Android/IOS APP available)
7. Integrated lithium battery communication port for BMS (Rs485)
8. Lithium battery activation by PV or utility power
9. Customizable settings for charging current and voltage
10. Cold start function

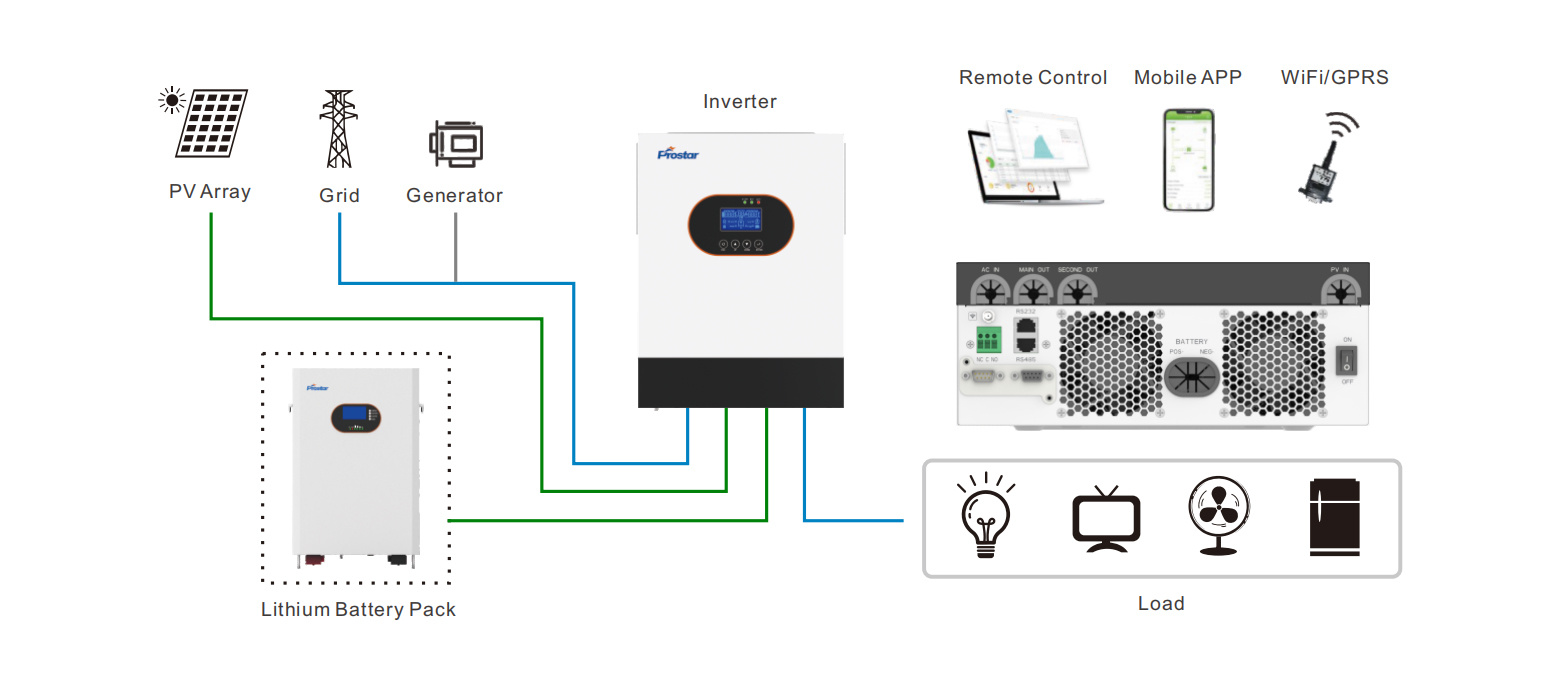

Application Diagram
Key words:
- Solar Inverter
- Hybrid Solar Inverter
- Off Grid Hybrid Solar Inverter
- Off Grid Solar Inverter
- Off Grid Inverter

MODEL	PID4.2K-48L	PID6.2K-48L
Rated Power	4200VA/4200W	6200VA/6200W
Phase	1-phase in/1-phase out
Parallel Function	No
Product Dimension, D×W×H (mm)	418×300×122
Packing Dimension, D×W×H (mm)	495×395×215
Net Weight (Kg)	9
INPUT
Voltage	220/230VAC
Selectable Voltage Range	170-280VAC (PC), 90-280VAC (Appliances)
Frequency Range	50Hz/60Hz (Auto Sensing)
OUTPUT
Nominal Voltage	220/230/240VAC (Settable)
Main Output Power	4200VA/4200W	6200VA/6200W
Second Output Power	4200VA/4200W	6200VA/6200W
Surge Power	8400VA	12400VA
Frequency	50Hz/60Hz
Peak Efficiency (PV to INV)	96%
Peak Efficiency (Battery to INV)	93%
Transfer Time	10ms (UPS), 20ms (Appliances)
Waveform	Pure Sine Wave
Overload Protection	60s@105%~110%Load, 10s@110%~140% Load, 5s@≥140%Load
BATTERY
Battery Voltage	48VDC
Floating Charge Voltage	54VDC
Overcharge Protection	63VDC
SOLAR CHARGER & AC CHARGER
Solar Charger Type	MPPT
Maximum PV Array Power	5500W	6500W
Maximum PV Array Open Circuit Voltage	500VDC
MPPT Operating Voltage Range	60VDC~450VDC
Maximum PV Input Current	27A
Maximum Solar Charge Current	100A	120A
Maximum AC Charge Current	80A	100A
Maximum Charge Current (PV+AC)	100A	120A
GENERAL
Communication Interface	RS232/RS485 (BMS)/Bluetooth/WiFi/Dry-contact
Lithium Battery Activation	YES (By PV or Utility)
ENVIRONMENT
Operating Temperature Range	-10℃~50℃
Storage Temperature	-15℃~60℃
Humidity	5%~95% Relative Humidity (Non-condensing)

Note: Product specifications are subject to change without notice.

Off-grid Solar System

Household Appliances

Office Equipment

Outdoor Lighting

Communication Base Station

Monitoring Equipment

Island

Remote Mountainous Area
