Off Grid Solar Inverter 8.5kW-11kW

Classify：

Inverter

Off Grid Solar Inverter

keywords：

Solar Inverter

Hybrid Solar Inverter

Off Grid Hybrid Solar Inverter

Off Grid Solar Inverter

Off Grid Inverter

File Download：

PIE Series Off Grid Hybrid Solar Inverter (8.5kW-11kW).pdf

Consulting Hotline：

+86-757-81285488

Product Description
Technical Specification
Applied Range
Product Catalogue

- Brand: Prostar
- Commodity name: Off Grid Solar Inverter 8.5kW-11kW
PIE Series Off Grid Hybrid Solar Inverter | Capacity: 8.5kW / 11kW | PV Array MPPT Voltage Range: 60VDC-500VDC | Phase: Single Phase | Input/Output Voltage: 220VAC/230VAC | Frequency: 50Hz/60Hz

This solar inverter features dual built-in MPPT solar charge controllers with a capacity of 140A/160A for optimal energy harvesting. It is compatible with LiFePO4 lithium batteries through RS485 communication and can activate lithium batteries via PV or utility power. The pure sine wave output ensures stable and clean power for sensitive electronics. Supporting up to 500Vdc PV input allows for greater energy capture. It can function without a battery, providing flexibility for various applications. Designed for harsh environments, it includes a detachable dust cover for enhanced durability and longevity. It supports UTL, SOL, SBU, and SUB priority modes for versatile energy management.

Features Introduction

1.Built-in 2 MPPT
2.Lithium battery activation function by PV or Utility
3.Compatible work with LiFePO4 battery via RS485
4.Pure sine wave
5.Power factor 1.0
6.PV Input 500Vdc Max
7.Built-in MPPT 140A/160A
8.Capable to work without battery
9.Detachable dust cover for harsh environments
10.Wi-Fi remote monitoring optional
11.Support multiple output priorities: UTL, SOL, SBU, SUB
12.EQ function to optimize battery performance and extend lifecycle

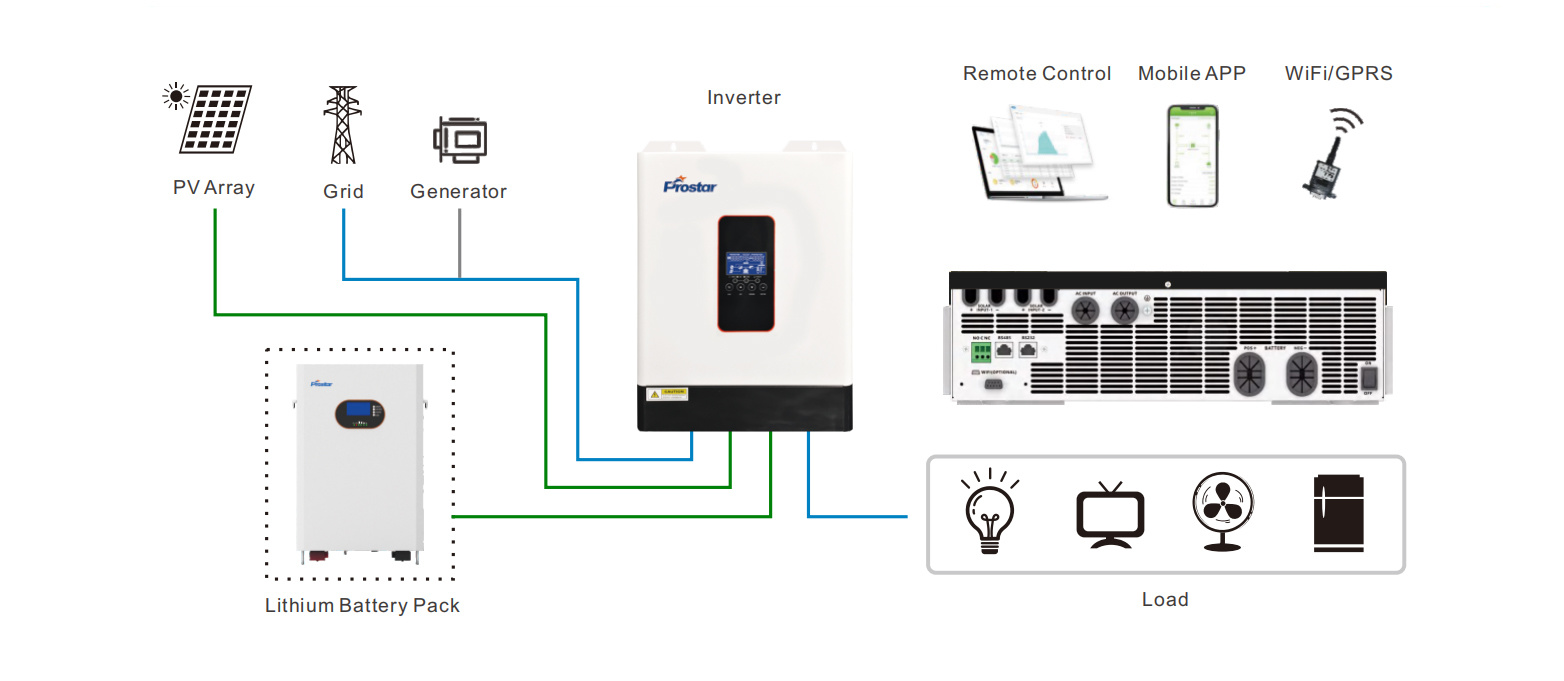

Application Diagram
Key words:
- Solar Inverter
- Hybrid Solar Inverter
- Off Grid Hybrid Solar Inverter
- Off Grid Solar Inverter
- Off Grid Inverter

MODEL	PIE8.5K-48L	PIE11K-48L
Capacity	8.5KVA/8.5KW	11KVA/11KW
Maximum PV Input Power	10KW	11KW
Dimensions (DxWxH mm)	540×415×122	540×415×122
Net Weight (Kg)	14	15
Parallel Capability	No	No
Lithium Battery Activation	YES (By PV or Utility)	YES (By PV or Utility)
Lithium Battery Communication	YES (RS485)	YES (RS485)
INPUT
Nominal Voltage	220/230/240VAC
Acceptable Voltage Range	170-280VAC (For Personal Computer); 90-280VAC (For Home Appliances)
Frequency	50/60 Hz (Auto Sensing)
OUTPUT
Nominal Voltage	220/230/240VAC
Surge Power	17000VA	22000VA
Frequency	50/60Hz
Waveform	Pure Sine Wave
Transfer Time	10ms (For Personal Computer); 20ms (For Home Appliances)
Peak Efficiency	94%
Overload Protection	5s@>=140% Load; 10s@110%-140% Load
Admissible Power Factor	0.6-1 (Inductive or Capacitive)
Grid-tie Operation	Option
BATTERY
Battery Voltage	48VDC	48VDC
Maximum Discharge Current	180A	220A
Floating Charge Voltage	54VDC	54VDC
Over Charge Protection	63VDC	63VDC
Charging Method	CC/CV
SOLAR CHARGER & CHARGER
Solar Charger Type	MPPT	MPPT
Max. PV Array Power	5000Wx2	5500Wx2
Max. PV Array Open Circuit Voltage	500VDC	500VDC
PV Array MPPT Voltage Range	60VDC-500VDC	60VDC-500VDC
Max. Solar Input Current	18Ax2	18Ax2
Max. Solar Charge Current	140A	160A
Max. AC Charge Current	120A	120A
Max. Charge Current	140A	160A
PHYSICAL
Communication Interface	RS232/RS485/DRY Contact
LCD	YES
ENVIRONMENT
Operating Temperature Range	-10°C to 55°C
Storage Temperature	-15°C to 60°C
Humidity	5% to 95% Relative Humidity (Non-condensing)

Note: Product specifications are subject to change without notice.

Off-grid Solar System

Household Appliances

Office Equipment

Outdoor Lighting

Communication Base Station

Monitoring Equipment

Island

Remote Mountainous Area
