Off Grid Solar Inverter 3.5kW-6.2kW

Classify：

Inverter

Off Grid Solar Inverter

keywords：

Solar Inverter

Hybrid Solar Inverter

Off Grid Hybrid Solar Inverter

Off Grid Solar Inverter

Off Grid Inverter

File Download：

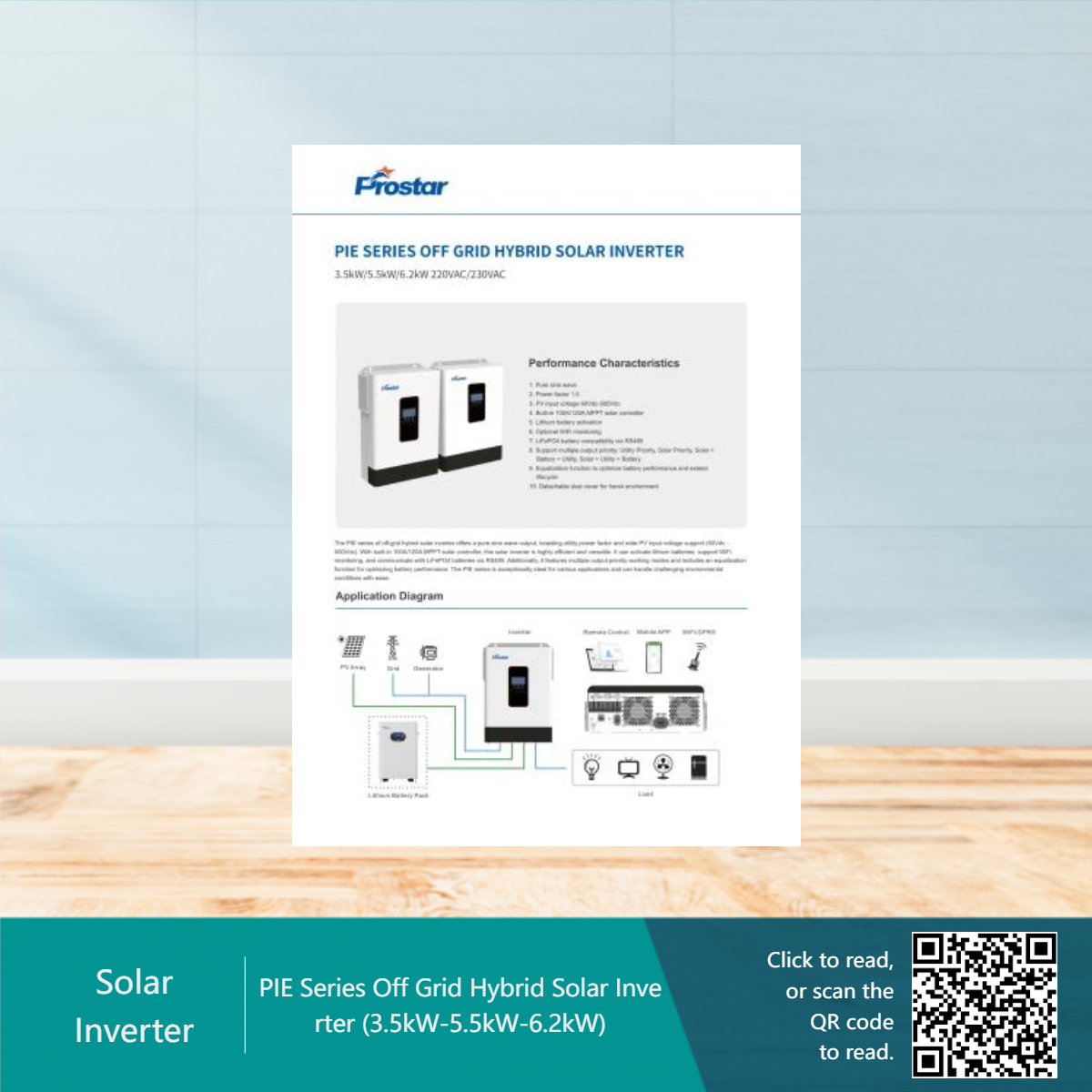

PIE Series Off Grid Hybrid Solar Inverter (3.5kW-5.5kW-6.2kW).pdf

Consulting Hotline：

+86-757-81285488

Product Description
Technical Specification
Applied Range
Product Catalogue

- Brand: Prostar
- Commodity name: Off Grid Solar Inverter 3.5kW-6.2kW
PIE Series Off Grid Hybrid Solar Inverter | Capacity: 3.5kW / 5.5kW / 6.2kW | PV Array MPPT Voltage Range: 60VDC-500VDC | Phase: Single Phase | Input/Output Voltage: 220VAC/230VAC | Frequency: 50Hz/60Hz

Prostar PIE series of off-grid hybrid solar inverters offer a pure sine wave output, boasting a utility power factor and wide PV input voltage support (60Vdc-500Vdc). With a built-in 100A/120A MPPT solar controller, this solar inverter is highly efficient and versatile. It can activate lithium batteries, support Wi-Fi monitoring, and communicate with LiFePO4 batteries via RS485. Additionally, it features multiple output priority working modes and includes an equalization function for optimizing battery performance. The PIE series is exceptionally ideal for various applications and can handle challenging environmental conditions with ease.

Features Introduction

1.Pure sine wave
2.Power factor 1.0
3.PV input voltage 60Vdc-500Vdc
4.Built-in 100A/120A MPPT solar controller
5.Lithium battery activation
6.Optional Wi-Fi monitoring
7.LiFePO4 battery compatibility via RS485
8.Support multiple output priorities: Utility Priority, Solar Priority, Solar > Battery > Utility, Solar > Utility > Battery
9.Equalization function to optimize battery performance and extend lifecycle
10.Detachable dust cover for harsh environments

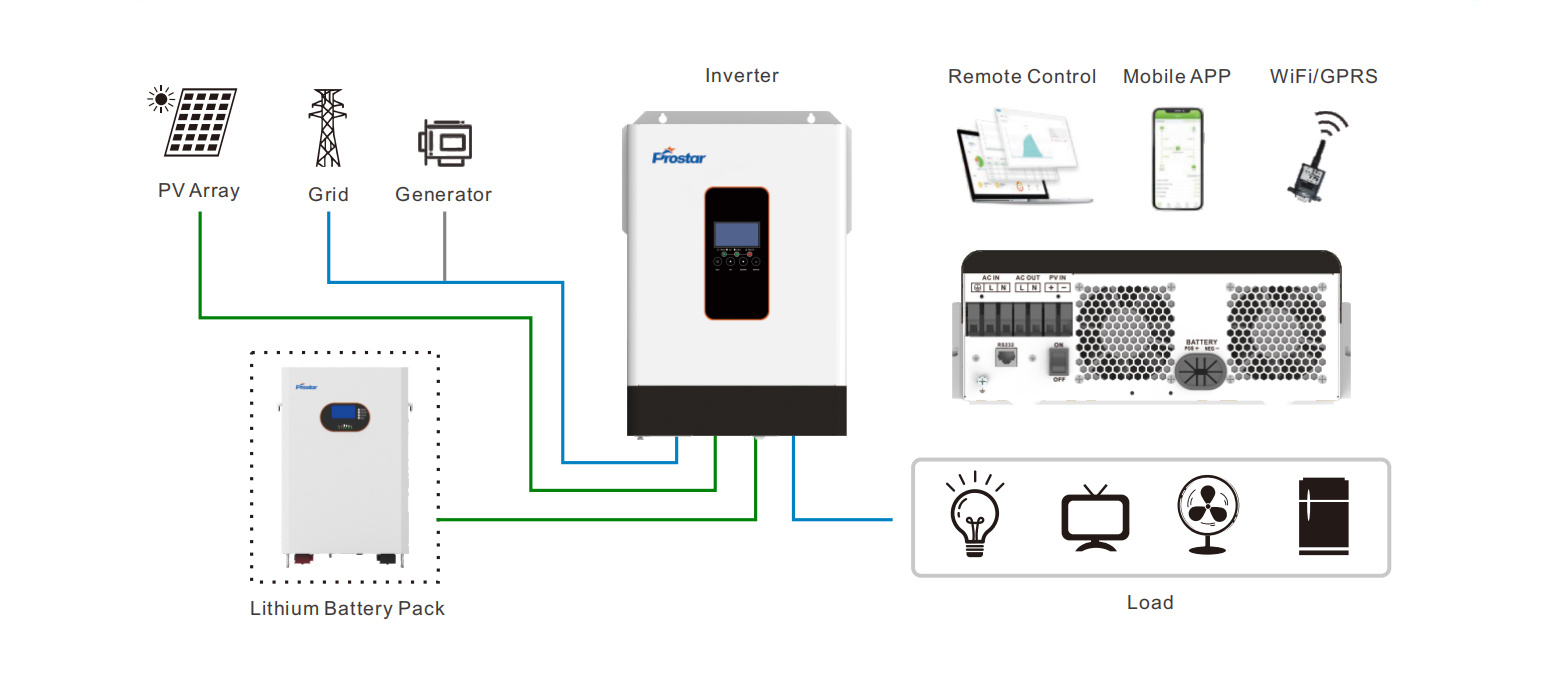

Application Diagram
Key words:
- Solar Inverter
- Hybrid Solar Inverter
- Off Grid Hybrid Solar Inverter
- Off Grid Solar Inverter
- Off Grid Inverter

MODEL	PIE3.5K-24L	PIE5.5K-48L	PIE6.2K-48L
Capacity	3.5KVA/3.5KW	5.5KVA/5.5KW	6.2KVA/6.2KW
Product Dimensions (DxWxH mm)	358x295x100	438x295x105
Package Dimensions (DxWxH mm)	465x380x175	560x375x185
Net Weight (Kg)	7	9	9
Parallel Capability	No	No	No
INPUT
Nominal Voltage	220/230VAC
Acceptable Voltage Range	170-280VAC (For Personal Computer); 90-280VAC (For Home Appliances)
Frequency	50/60 Hz (Auto Sensing)
OUTPUT
Nominal Voltage	220/230VAC±5%
Surge Power	7000VA	11000VA	12400VA
Frequency	50/60Hz
Waveform	Pure Sine Wave
Transfer Time	10ms (For Personal Computer); 20ms (For Home Appliances)
Peak Efficiency (PV to INV)	96%
Peak Efficiency (Battery to INV)	93%
Overload Protection	5s@>=150% Load; 10s@110%-150% Load
Crest Factor	3:1
Admissible Power Factor	0.6-1 (Inductive or Capacitive)
BATTERY
Battery Voltage	24VDC	48VDC	48VDC
Floating Charge Voltage	27VDC	54VDC	54VDC
Over Charge Protection	33VDC	63VDC	63VDC
Charging Method	CC/CV
Lithium Battery Activation	Yes
Lithium Battery Communication	Yes (RS485)
SOLARCHARGER & CHARGER
Solar Charger Type	MPPT
Max. PV Array Power	4000W	5500W	6500W
Max. PV Array Open Circuit Voltage	500VDC
PV Array MPPT Voltage Range	60VDC-500VDC
Max. Solar Input Current	15A	18A	27A
Max. Solar Charge Current	100A	100A	120A
Max. AC Charge Current	60A	80A	80A
Max. Charge Current	100A	100A	120A
PHYSICAL
Communication Interface	RS232+RS485
ENVIRONMENT
Operating Temperature Range	-10°C to 50°C
Storage Temperature	-15°C to 50°C
Humidity	5% to 95% Relative Humidity (Non-condensing)

Note: Product specifications are subject to change without notice.

Off-grid Solar System

Household Appliances

Office Equipment

Outdoor Lighting

Communication Base Station

Monitoring Equipment

Island

Remote Mountainous Area
