Solar Charge Controller 30A-100A (MPPT)

MCR Series MPPT Solar Charge Controller | Charging Current: 30A-100A | System Voltage: 12V/24V/48V/96V | Charge Control: MPPT

Classify：

Solar Charge Controller

keywords：

Solar Charge Controller

Solar Controller

MPPT Solar Charge Controller

MPPT Solar Controller

Controller

File Download：

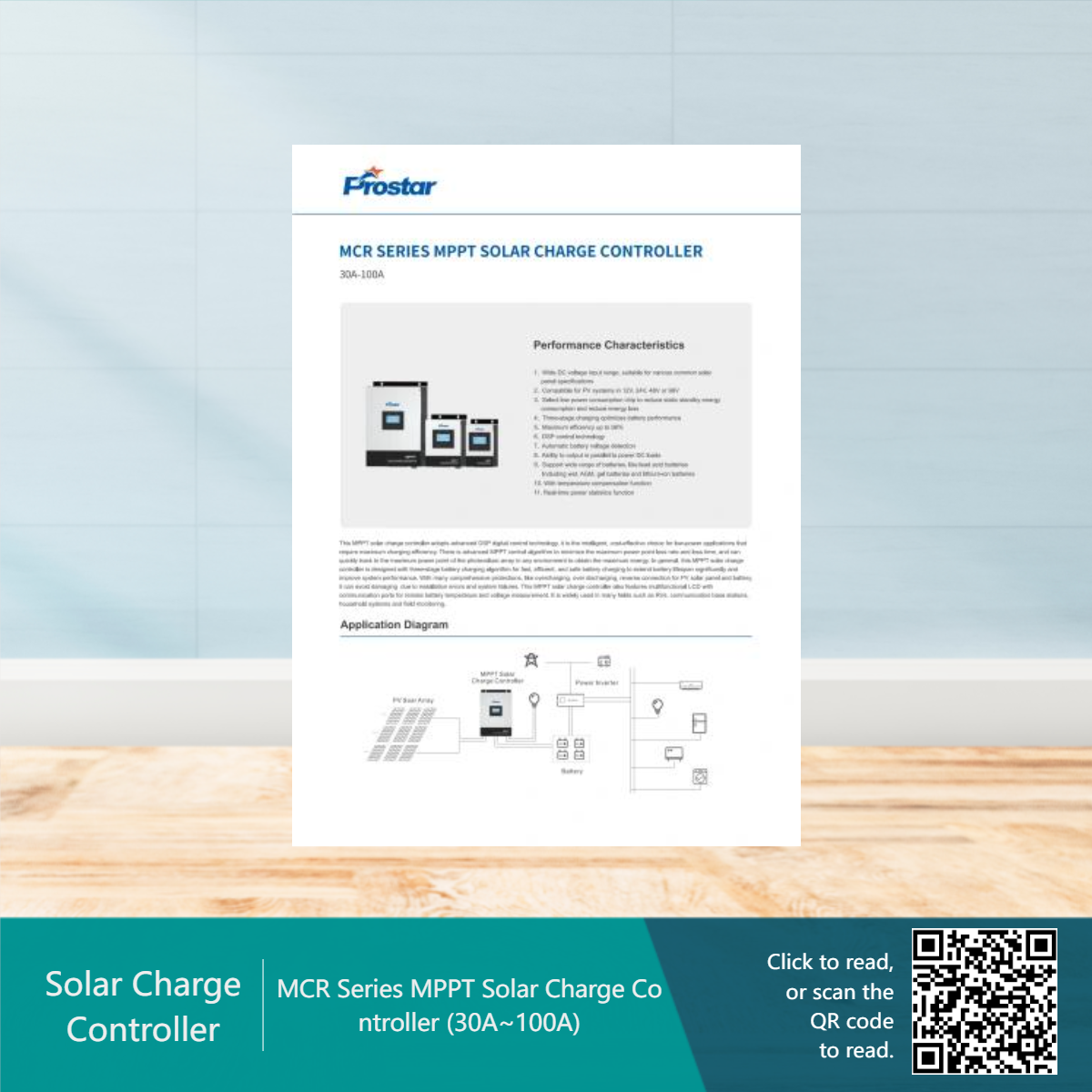

MCR Series MPPT Solar Charge Controller (30A~100A).pdf

Consulting Hotline：

+86-757-81285488

Product Description
Technical Specification
Applied Range
Product Catalogue

- Brand: Prostar
- Commodity name: Solar Charge Controller 30A-100A (MPPT)
MCR Series MPPT Solar Charge Controller | Charging Current: 30A-100A | System Voltage: 12V/24V/48V/96V | Charge Control: MPPT

This MPPT solar charge controller utilizes advanced DSP digital control technology, making it an intelligent, cost-effective choice for low-power applications that require maximum charging efficiency. It features an advanced MPPT control algorithm to minimize the maximum power point loss rate and loss time, and can quickly track the maximum power point of the photovoltaic array in any environment to capture the maximum energy. Generally, this MPPT solar charge controller is designed with a three-stage battery charging algorithm for fast, efficient, and safe battery charging, significantly extending battery lifespan and improving system performance. With comprehensive protections such as overcharging, over-discharging, and reverse connection for PV solar panels and batteries, it can prevent damage due to installation errors and system failures. This MPPT solar charge controller also includes a multifunctional LCD with communication ports for remote battery temperature and voltage measurement. It is widely used in various fields such as RVs, communication base stations, household systems, and field monitoring.

Features Introduction

1. Wide DC voltage input range, suitable for various common solar panel specifications.
2. Compatible with PV systems in 12V, 24V, 48V, or 96V configurations.
3. Select low-power-consumption chips to reduce static standby energy consumption and minimize energy loss.
4. Three-stage charging optimizes battery performance.
5. Maximum efficiency of up to 98%.
6. DSP control technology.
7. Automatic battery voltage detection.
8. Capable of outputting in parallel to power DC loads.
9. Supports a wide range of batteries, such as lead-acid batteries.
10. Including wet, AGM, gel batteries, and lithium-ion batteries.
11. Equipped with temperature compensation function.
12. Real-time power statistics function.

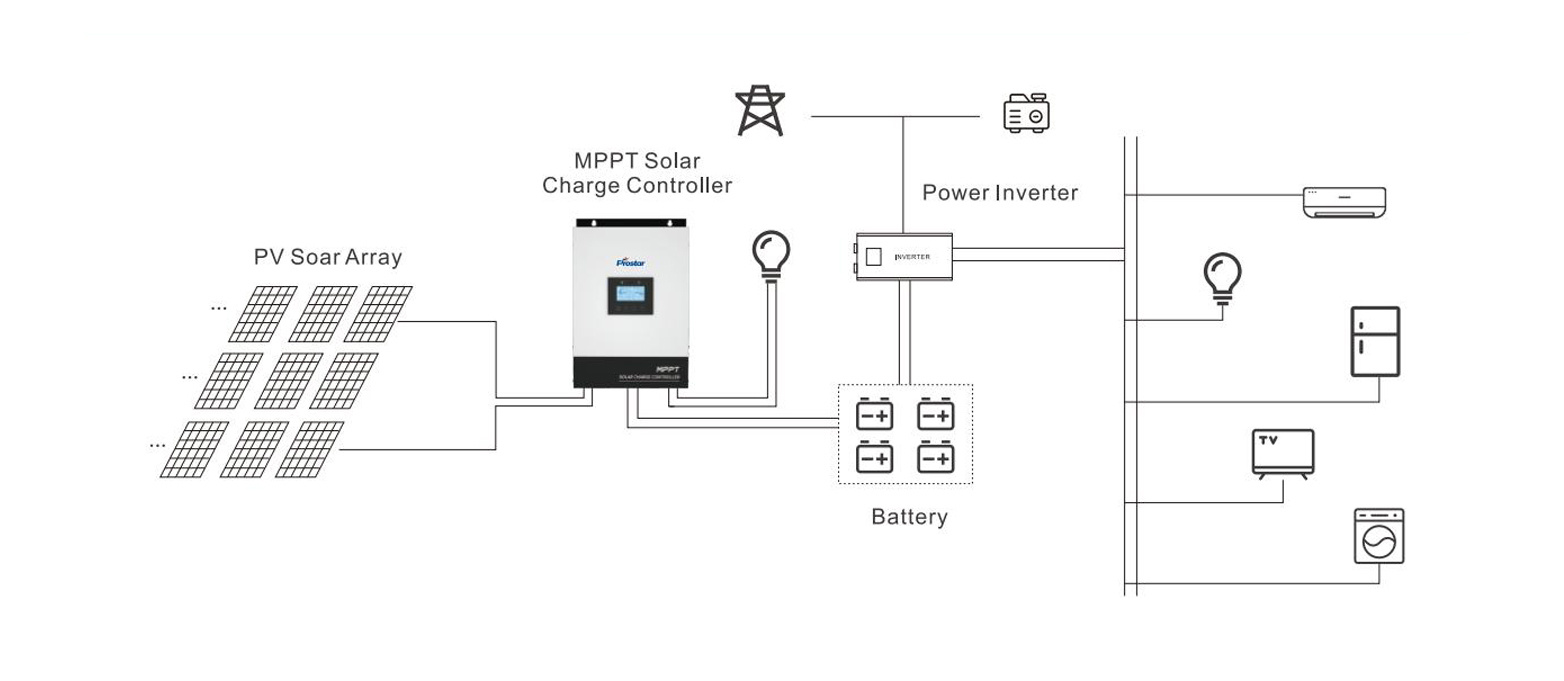

Application Diagram
Key words:
- Solar Charge Controller
- Solar Controller
- MPPT Solar Charge Controller
- MPPT Solar Controller
- Controller

MODEL			MCR3024	MCR-48	MCR100-4S	MCR100-96
MPPT Efficiency			≥99.5%
System Voltage			12V/24V (Auto)	12V/24V/48V (Auto)	48V/96V (Auto)
Dimension (mm)			162x150x78	200x168x94	359x240x114
Net Weight (Kg)			1.3	1.8	7.2
INPUT
Max. PV Input Voltage			100VDC	170VDC	225VDC
MPPT Operating Voltage Range		12V	18VDC-95VDC	18VDC-150VDC	-
		24V	34VDC-95VDC	34VDC-150VDC	-
		48V	-	65VDC-150VDC
		96V	-		130VDC-180VDC
Low Voltage Protection		12V	16VDC		-
		24V	30VDC		-
		48V	-	60VDC
		96V	-		120VDC
High-Voltage Protection			100VDC	170VDC	230VDC
PV Rated Input Power	12V		428W	855W	-
	24V		856W	1710W	-
	48V		-	3420W	4560W	5700W
	96V		-		9120W	11400W
DC LOAD OUTPUT
Load Voltage			Same as battery voltage, but set DC system without DC output load
Load Current			30A	60A	100A
CHARGE
Battery Type			Sealed Lead Acid, Gel, Flooded, Lithium-ion, User-defined
Charging Mode			Three-stage: CC (Constant current) - CV (Constant voltage) - CF (Float charge)
Float Charging Voltage	12V		13.8VDC (Settable)		-
	24V		27.6VDC (Settable)		-
	48V		-	55.2VDC (Settable)
	96V		-			110.4VDC (Settable)
Lead Acid Default	12V		14.5VDC (Settable)		-
	24V		29.0VDC (Settable)		-
	48V		-	58.0VDC (Settable)
	96V		-		116.0VDC (Settable)
SYSTEM
Protection Function			Input low/high voltage, input/output polarity reverse connection, short circuit, over temperature, battery shedding, etc.
Display			LED + LCD
Communication			RS485 (Optional)
ENVIRONMENT
Relative Humidity			5%-90%RH (Non-condensing)
Altitude			<3000m
Operating Temp.			-20°C to +40°C
Protection Grade			IP21

Note: Product specifications are subject to change without notice.

Residential solar power system

Communication base station

Surveillance system

Solar street light system

solar off-grid power generation system

Solar DC power supply system

Solar RV power generation system

Solar application products
