Bi-Facial N-type Solar Module 700W-720W

PMH Series Bi-Facial N-Type Solar Module | Capacity: 700W-720W | Solar Cells Number: 132Pcs

Classify：

Solar Module

132 Half Cut Solar Module

keywords：

Solar Module

Mono Solar Module

Solar Panel

Mono Solar Panel

Bi-Facial N-Type Solar Module

File Download：

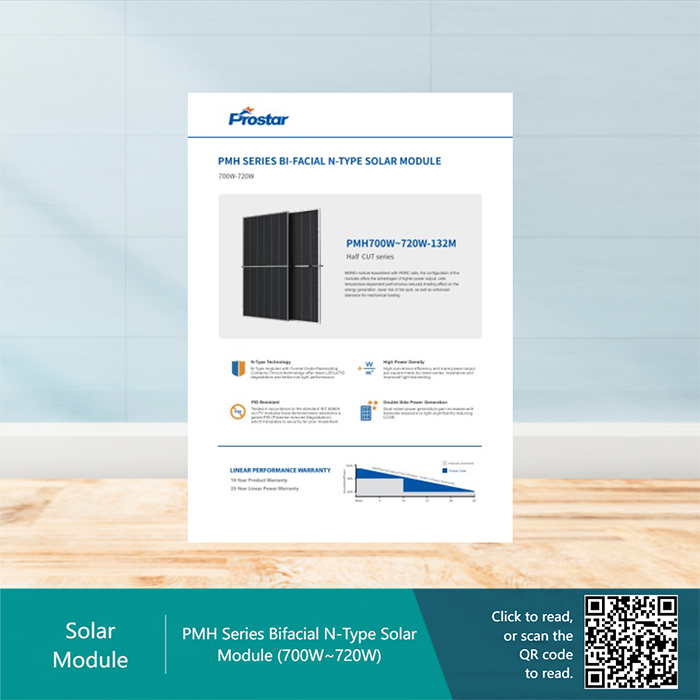

PMH Series Bifacial N-Type Solar Module (700W~720W).pdf

Consulting Hotline：

+86-757-81285488

Product Description
Technical Specification
Applied Range
Product Catalogue

- Brand: Prostar
- Commodity name: Bi-Facial N-type Solar Module 700W-720W
PMH Series Bi-Facial N-Type Solar Module | Capacity: 700W-720W | Solar Cells Number: 132Pcs

Prostar PMH Series Bi-Facial N-Type Solar Module is leading the charge in solar technology with its innovative design and high-performance features. Engineered with PERC cells, these modules not only deliver higher power output but also excel in temperature performance, reduced shading effects, and mechanical strength. The integration of N-Type technology with TOPCon further enhances low light performance and degradation resistance. With power outputs ranging from 600W to 720W, these modules are set to optimize energy capture and ensure a reliable solar solution for both residential and commercial applications.

Features Introduction

1. High-Performance PERC Cells: Assembled with high-efficiency PERC cells for superior power output and reliability.
2. N-Type TOPCon Technology: Utilizes Tunnel Oxide Passivating Contacts for lower degradation and improved low light response.
3. High Power Density: Achieves more power output per square meter with its high conversion efficiency.
4. PID Resistance: Tested against IEC 62804 standards, ensuring long-term durability and performance.
5. Double Side Power Generation: Capitalizes on backside light exposure to increase energy yield and reduce LCOE.
6. Optimized for All Conditions: Designed to withstand a variety of environmental conditions, ensuring consistent performance.
7. Seamless System Integration: Compatible with existing solar systems for easy integration into new or existing setups.
8. Extended Performance Warranty: Backed by a comprehensive warranty for peace of mind and long-term value.
Key words:
- Solar Module
- PERC Solar Module
- Half-cut Cell Mono PERC Solar Module
- Half-cut Cell Mono Solar Modulen
- Mono Solar Module

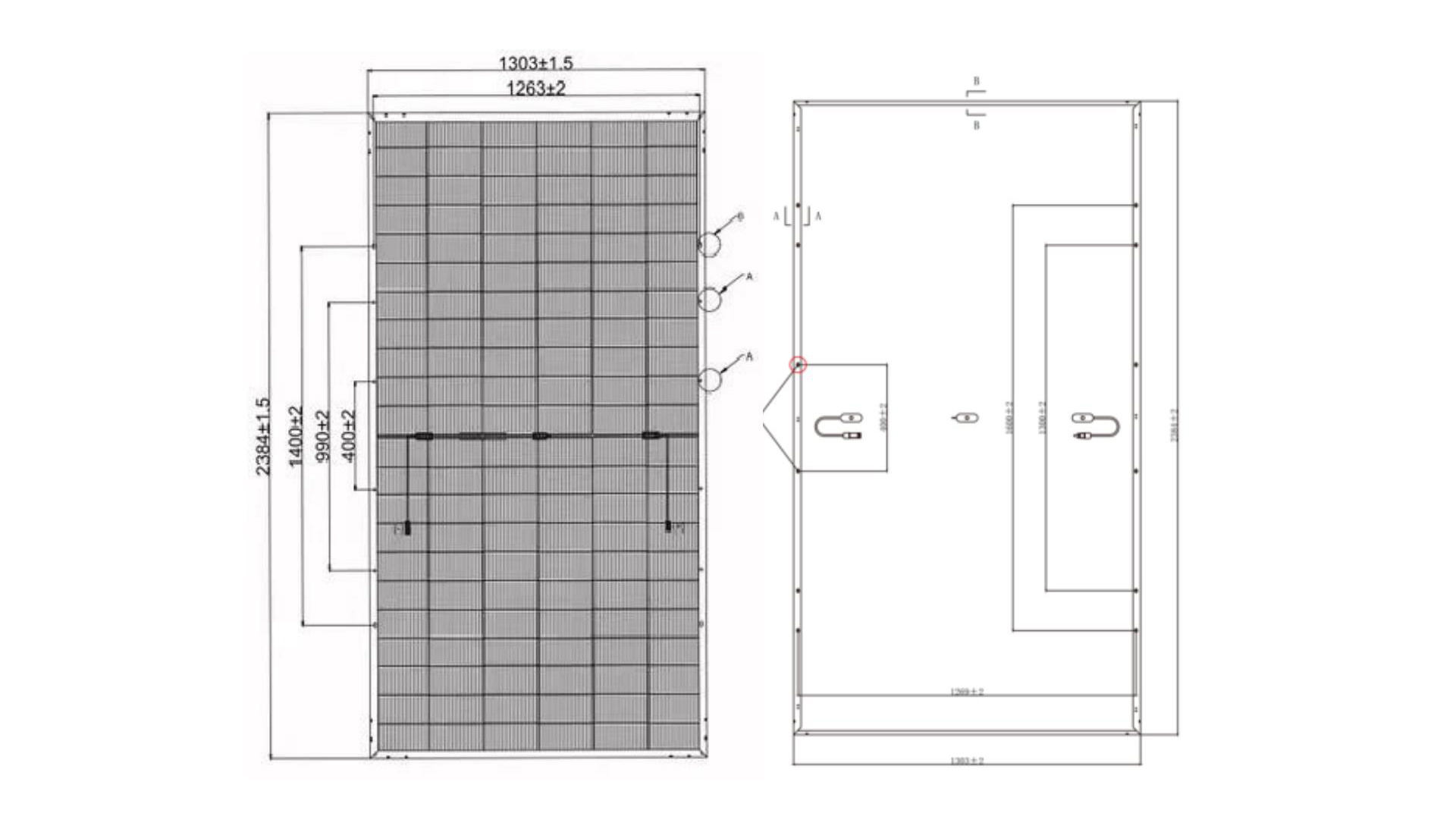

Mechanical Diagrams

MODEL	PMH700W~720W-132M
Weight	38.70Kg
Dimension	2384x1303x35mm
Cell Amount	66x2Pcs
Maximum System Voltage	1500V
Junction Box	IP68
Frame	Aluminum Alloy
Cable	4mm²/300mm
Connector	MC4 Compatible
Application Level	Class A

Technical Specifications

MODEL	PMH700W-132M		PMH705W-132M		PMH710W-132M		PMH715W-132M		PMH720W-132M
	STC	BNP1	STC	BNP1	STC	BNP1	STC	BNP1	STC	BNP1
Maximum Power (Pmax) W	700	770	705	775	710	780	715	785	720	790
Open Circuit Voltage (Voc) V	50.13	50.13	50.29	50.29	50.44	50.44	50.59	50.59	50.74	50.74
Short Circuit Current (Isc) A	17.43	19.17	17.49	19.22	17.55	19.28	17.61	19.33	17.67	19.38
Maximum Power Voltage (Vmp) V	42.10	42.10	42.25	42.25	42.39	42.39	42.54	42.54	42.68	42.68
Maximum Power Current (Imp) A	16.63	18.29	16.69	19.22	16.75	18.41	16.81	18.46	16.87	18.51
Module Efficiency (%)	22.53		22.70		22.86		23.02		23.18
Temp. Coefficient of Voc	-0.275%/°C
Temp. Coefficient of Isc	+0.046%/°C
Temp. Coefficient of Pmax	-0.350%/°C
Modules/Pallet	31 Pieces
Modules/40°Container	558 Pieces
Packing Description	18 Pallets, Total=(31+31)x9=558 Pieces
Output Tolerance	0~+5W
Operating Temperature	-40°C~+85°C
Wind Load/Snow Load	2400pa/5400pa
Fuse Current	30A

Notes: STC: Standard Test Conditions (Irradiance 1000W/m², Cell Temperature 25°C, AM 1.5)

BNPI: Backside Nominal Power Index (Front 1000W/m², Rear 135W/m²)

Residential Roof

Factory Roof

Commercial Roof

Photovoltaic Carport

Agriculture Photovoltaic Complementation

Fishery Photovoltaic Complementation

Off Grid Power Station

Large-scale Power Station
