Bi-Facial Mono PERC Solar Module 555W-580W

PMH Series Bi-Facial Mono PERC Solar Module | Capacity: 555W-580W | Solar Cells Number: 144Pcs

Classify：

Solar Module

144 Half Cut Solar Module

keywords：

Solar Module

PERC Solar Module

Mono Solar Module

Mono PERC Solar Module

Bi-Facial Mono PERC Solar Module

File Download：

PMH Series Bifacial MONO PERC Solar Module (555W~580W).pdf

Consulting Hotline：

+86-757-81285488

Product Description
Technical Specification
Applied Range
Product Catalogue

- Brand: Prostar
- Commodity name: Bi-Facial Mono PERC Solar Module 555W-580W
PMH Series Bi-Facial Mono PERC Solar Module | Capacity: 555W-580W | Solar Cells Number: 144Pcs

The PMH Series Bi-Facial Mono PERC Solar Module is a cutting-edge solar technology designed for optimal energy generation. These modules are constructed with PERC cells, which are known for their high power output and superior temperature-dependent performance. The configuration minimizes shading effects on energy generation and reduces the risk of hot spots, ensuring a reliable energy yield. Moreover, the N-Type Technology with TOPCon further enhances the module's efficiency and low light performance, promising lower degradation rates and a robust resistance to LID/LETID, as supported by IEC 62804 standards.

The PMH Series also boasts a high power density, thanks to its lower series resistance and improved light harvesting capabilities, which translates to more power output per square meter. This feature, combined with the module's PID resistance, ensures the longevity and security of the investment. The dual-sided power generation is another standout feature, where the backside exposure to light significantly amplifies energy output, contributing to a reduced Levelized Cost of Electricity (LCOE).

Features Introduction

1. MONO module: Assembled with PERC cells, the configuration of the modules offers the advantages of higher power output, temperature-dependent performance of cells, reduced shading effect on energy generation, lower risk of hot spots, as well as enhanced tolerance for mechanical loading.

2. N-Type Technology: N-Type modules with Tunnel Oxide Passivating Contacts (TOPCon) technology offer lower LID/LETID degradation and better low light performance.

3. High Power Density: High conversion efficiency and more power output per square meter, achieved by lower series resistance and improved light harvesting.

4. PID Resistant: Tested in accordance with the standard IEC 62804, our PV modules have demonstrated resistance against PID (Potential Induced Degradation), which translates to security for your investment.

5. Double Side Power Generation: The dual-sided power generation gain increases with backside exposure to light, significantly reducing LCOE.
Key words:
- Solar Module
- PERC Solar Module
- Half-cut Cell Mono PERC Solar Module
- Half-cut Cell Mono Solar Modulen
- Mono Solar Module

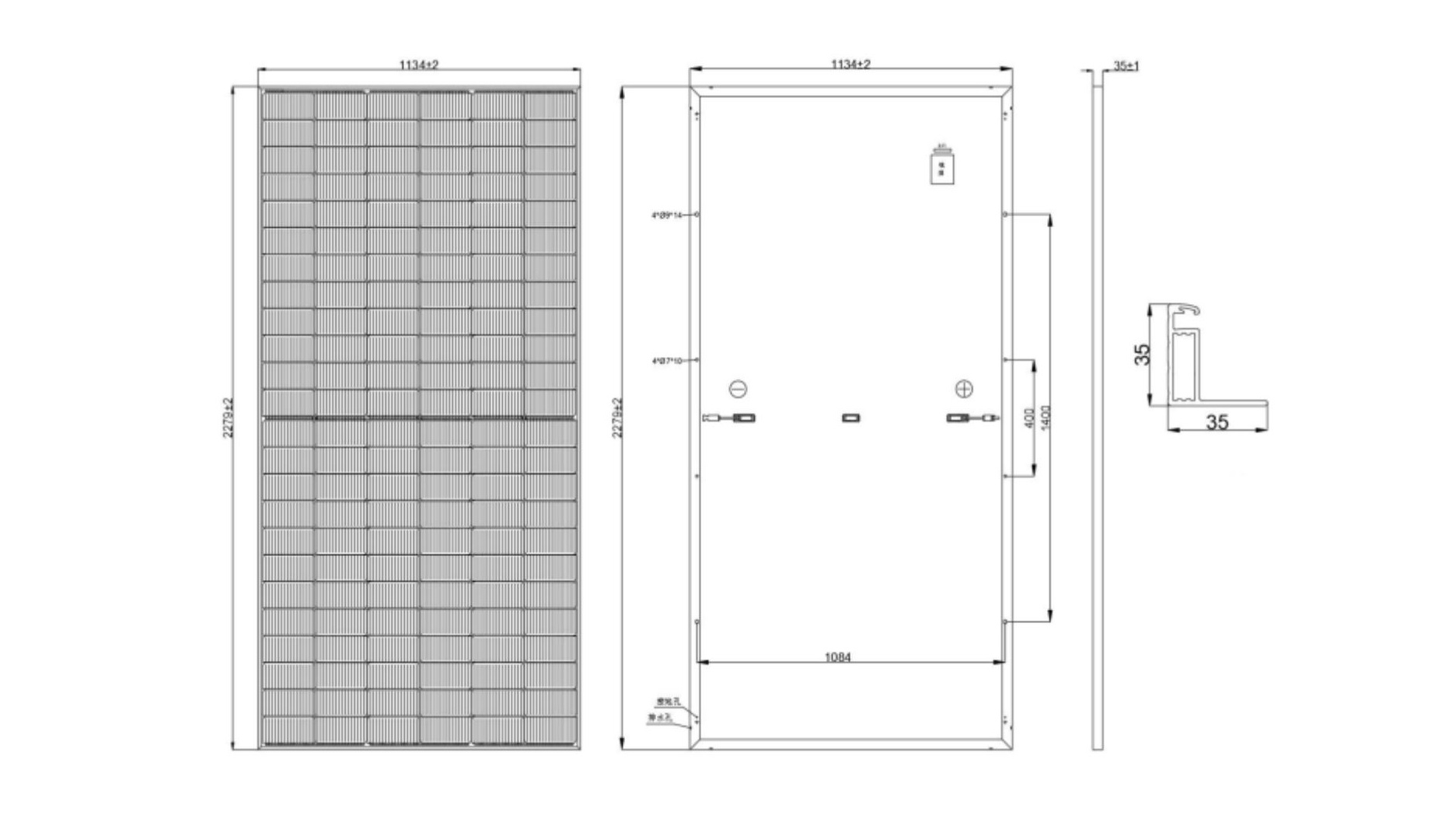

Mechanical Diagrams

MODEL	PMH555W~580W-144M
Weight	27.30Kg
Dimension	2279x1134x30mm
Cell Amount	72x2Pcs
Maximum System Voltage	1500V
Junction Box	IP68
Frame	Aluminum Alloy
Cable	4mm²/300mm
Connector	MC4 Compatible
Application Level	Class A

Technical Specifications

MODEL	PMH555W-144M		PMH560W-144M		PMH565W-144M		PMH570W-144M		PMH575W-144M		PMH580W-144M
	STC	BNP1	STC	BNP1	STC	BNP1	STC	BNP1	STC	BNP1	STC	BNP1
Maximum Power (Pmax) W	555	417	560	421	565	425	570	429	575	432	580	436
Open Circuit Voltage (Voc) V	50.65	48.24	50.80	48.38	50.95	48.52	51.10	48.67	51.25	48.81	51.4	48.95
Short Circuit Current (Isc) A	14	11.29	14.06	11.34	14.12	11.39	14.20	11.45	14.28	11.52	14.35	11.57
Maximum Power Voltage (Vmp) V	42.06	39.68	42.23	39.84	42.39	39.99	42.55	40.14	42.71	40.29	42.87	40.44
Maximum Power Current (Imp) A	13.2	10.56	13.27	10.62	13.33	10.66	13.40	10.72	13.47	10.78	13.53	10.82
Module Efficiency (%)	21.48		21.67		21.86		22.06		22.25		22.45
Temp. Coefficient of Voc	-0.275%/°C
Temp. Coefficient of Isc	+0.046%/°C
Temp. Coefficient of Pmax	-0.350%/°C
Modules/Pallet	36 Pieces
Modules/40°Container	720 Pieces
Packing Description	20 Pallets, Total=(36+36)x10=720 Pieces
Output Tolerance	0~+5W
Operating Temperature	-40°C~+85°C
Wind Load/Snow Load	2400pa/5400pa
Fuse Current	20A

Notes: STC: Standard Test Conditions (Irradiance 1000W/m², Cell Temperature 25°C, AM 1.5)

BNPI: Backside Nominal Power Index (Front 1000W/m², Rear 135W/m²)

Residential Roof

Factory Roof

Commercial Roof

Photovoltaic Carport

Agriculture Photovoltaic Complementation

Fishery Photovoltaic Complementation

Off Grid Power Station

Large-scale Power Station
