Offline UPS 500VA-3kVA (1/1 PF:0.6 110/120/220/230AC)

Classify：

UPS

Offline UPS

keywords：

Offline UPS

Offline UPS System

Backup UPS

Pure Sine Wave Offline UPS

Pure Sine Wave UPS

File Download：

PB Series Offline UPS (500VA-3kVA PF0.6 1-1).pdf

Consulting Hotline：

+86-757-81285488

Product Description
Technical Specification
Applied Range

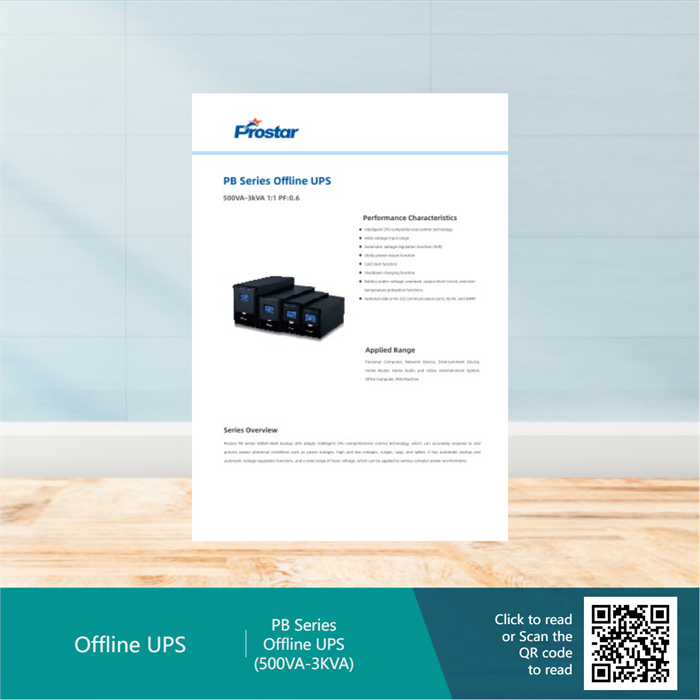

Product Catalogue

Brand: Prostar
Commodity name: Offline UPS 500VA-3kVA (1/1 PF:0.6 110/120/220/230AC)

Prostar PB Series 500VA-3kVA backup UPS adopts intelligent CPU comprehensive control technology, which can accurately respond to and process power abnormal conditions such as power outages, high and low voltages, surges, sags, and spikes. It features automatic startup, automatic voltage regulation functions, and a wide range of input voltage, making it suitable for various complex power environments.

Features Introduction

Intelligent CPU comprehensive control technology
Wide voltage input range
Automatic Voltage Regulation (AVR) function
Utility power restart function
Cold start function
Shutdown charging function
Battery under-voltage, overload, output short-circuit, and over-temperature protection functions
Optional USB or RS-232 communication ports, RJ-45, and SNMP support

Technical Specification

Model	PB-500	PB-650	PB-800	PB-1000	PB-1500	PB-2000A	PB-2000B	PB-3000
Capacity (VA/W)	0.5K/0.3K	0.65K/0.39K	0.8K0.48K	1K/0.6K	1.5K/0.9K	2K/1.2K		3K/1.8K
Size (WxDxH mm)	280x90x140	320x90x140	330x100x150	365x140x165			395x145x210
Weight (Kg)	4	5.2	5.7	10	11.9	12.6	17	21
Input
Voltage	110V/120VAC or 220/230/240VAC
Voltage Range	81-145VAC or 145-275VAC
Frequency	50Hz/60Hz (Auto Sensing)
Output
Voltage	110/120VAC or 220/230/240VAC
Voltage Range	±10%
Frequency Range	50Hz/60Hz ±1 (Battery Mode)
Transfer Time	4-6ms
Wave Form (Battery Mode)	Simulated Sine Wave
Battery
Battery Model & Quantity	12V/4.5AHx1	12V/7AHx1	12V/9AHx1	12V/7AHx2	12V/9AHx2	12V/9AHx2	12V/7AHx4	12V/9AHx4
Charge Time	8 hours to recover to 90% capacity
Protection
Full Protection	Automatic detection, discharge protection, output short-circuit protection, overload protection
Display
LCD Display	AC mode, Battery mode, Load level, Battery level, Input voltage, Output voltage, Overload and low battery
Alarm
Battery Mode	Sounding every 4 seconds
Low Battery	Sounding every second
Overload	Sounding every second
Fault	Continuously sounding
Environment
USB/RS232 Port (Optional)	Support Windows XP/Vista, Windows 7/8, Linux, Unix and MAC
Temperature and Humidity	Temperature 0~40°C, Humidity 0~95% (Non-condensing)
Noise Level	<40dB @ 1 Meter

Note: Product specifications are subject to change without notice.
