Deep Cycle Lead Acid Battery 12V 14AH-260AH

GPD Series Deep Cycle Lead Acid Battery | Capacity: 12V 14AH-260AH

Classify：

Valve Regulated Lead Acid Battery

Battery

keywords：

Deep Cycle Lead Acid Battery

Deep Cycle Battery

Deep Cycle Energy Storage Battery

Deep Cycle Lead Acid Batteries

Deep Cycle Solar Storage Battery

File Download：

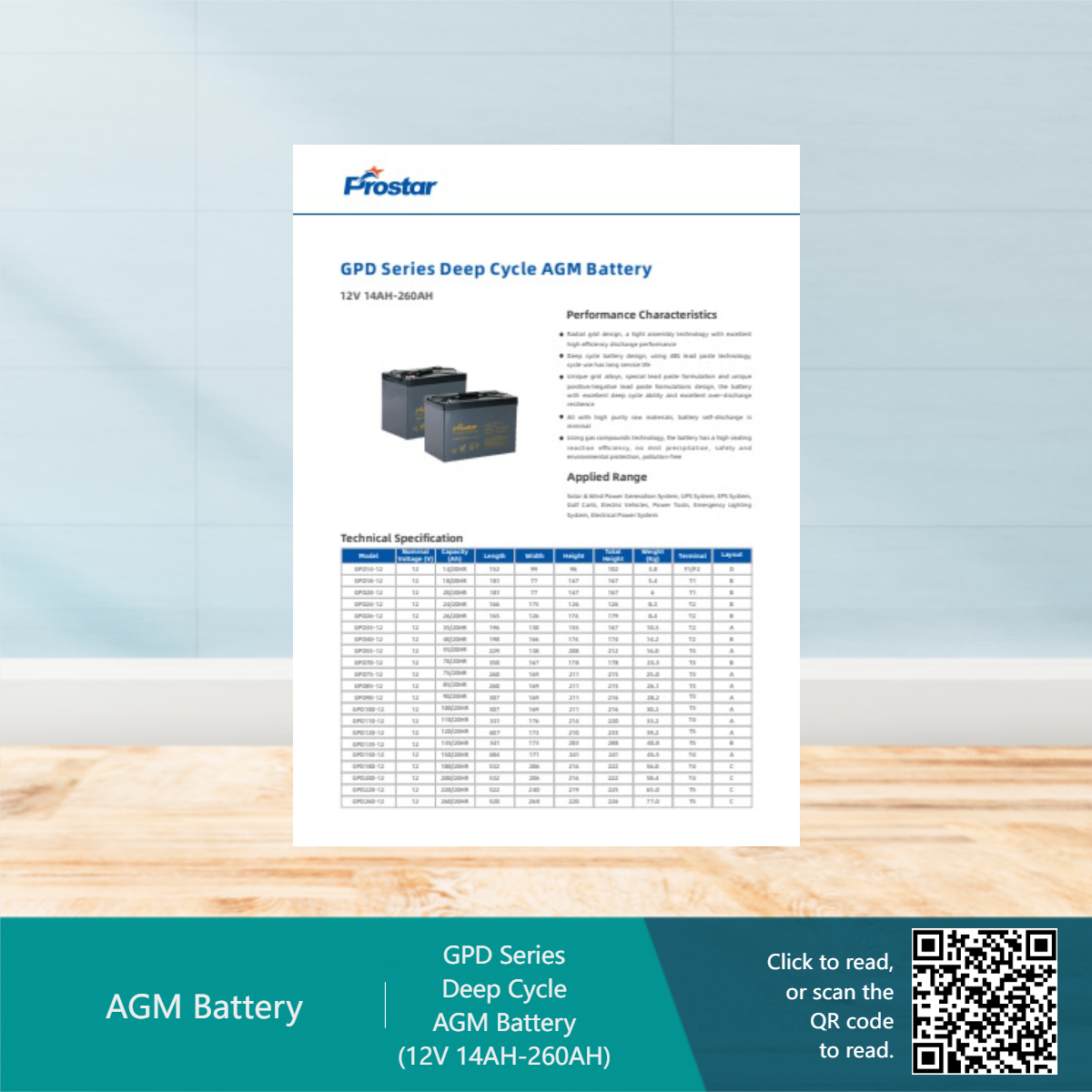

GPD Series Deep Cycle AGM Battery (12V 14AH-260AH).pdf

Consulting Hotline：

+86-757-81285488

Product Description
Technical Specification
Applied Range
Product Catalogue

- Brand: Prostar
- Commodity name: Deep Cycle Lead Acid Battery 12V 14AH-260AH
GPD Series Deep Cycle Lead Acid Battery | Capacity: 12V 14AH-260AH

Prostar GPD Series Deep Cycle Lead Acid Battery is engineered for demanding applications that require deep and repeated cycling. With capacities ranging from 12V 14AH to 260AH, these batteries are designed to deliver sustained power over long periods. The radial grid design, coupled with tight assembly technology, ensures exceptional discharge performance, making them ideal for applications that demand high efficiency and reliability. The use of 4BS lead paste technology in the deep cycle battery design ensures a prolonged service life, even under cyclic use. These batteries are manufactured with high-purity raw materials, which results in minimal self-discharge, preserving power for when it's needed most. The gas recombination technology used in these batteries not only increases sealing reaction efficiency but also prevents mist precipitation, contributing to their safety and environmental friendliness.

The GPD Series batteries also feature unique grid alloys and a special lead paste formulation, which enhance their deep cycle capability and resilience to over-discharge. This makes them highly suitable for use in floating modes where the batteries are regularly subjected to deep discharge cycles. A special design maintains the electrolyte fluid level, eliminating the need for water topping during the service life, which simplifies maintenance and ensures the batteries are low-maintenance and user-friendly. The high sealing reaction efficiency, achieved through advanced technology, guarantees that the batteries are safe, environmentally friendly, and free from pollution, making them an excellent choice for ecologically conscious energy storage solutions.

Features Introduction

1. The radial grid design, combined with tight assembly technology, delivers excellent high-efficiency discharge performance.
2. The deep cycle battery design, utilizing 4BS lead paste technology, ensures a long service life for cyclic use.
3. Unique grid alloys, a special lead paste formulation, and a unique design for both positive and negative lead pastes contribute to the battery's excellent deep cycle capability and over-discharge resilience.
4. Manufactured with high-purity raw materials, the battery has minimal self-discharge.
5. Employing gas recombination technology, the battery achieves a high sealing reaction efficiency, prevents mist precipitation, and is safe, environmentally friendly, and pollution-free.
Key words:
- Deep Cycle Lead Acid Battery
- Deep Cycle Battery
- Deep Cycle Energy Storage Battery
- Deep Cycle Lead Acid Batteries
- Deep Cycle Solar Storage Battery

Model	Nominal Voltage (V)	Capacity (Ah)	Length (mm)	Width (mm)	Height (mm)	Total Height (mm)	Weight (Kg)	Terminal Layout	Terminal
GPD14-12	12	14/20HR	152	99	96	102	3.8	F1/F2	D
GPD18-12	12	18/20HR	181	77	167	167	5.4	T1	B
GPD20-12	12	20/20HR	181	77	167	167	6	T1	B
GPD24-12	12	24/20HR	166	175	126	126	8.3	T2	B
GPD26-12	12	26/20HR	165	126	174	179	8.4	T2	B
GPD35-12	12	35/20HR	196	130	155	167	10.5	T2	A
GPD40-12	12	40/20HR	198	166	174	174	14.2	T2	B
GPD55-12	12	55/20HR	229	138	208	212	16	T3	A
GPD70-12	12	70/20HR	350	167	178	178	23.3	T3	B
GPD75-12	12	75/20HR	260	169	211	215	25	T3	A
GPD85-12	12	85/20HR	260	169	211	215	26.1	T3	A
GPD90-12	12	90/20HR	307	169	211	216	28.2	T3	A
GPD100-12	12	100/20HR	307	169	211	216	30.2	T3	A
GPD110-12	12	110/20HR	331	176	214	220	33.2	T4	A
GPD120-12	12	120/20HR	407	173	210	233	39.2	T5	A
GPD135-12	12	135/20HR	341	173	283	288	40.8	T5	B
GPD150-12	12	150/20HR	484	171	241	241	45.5	T4	A
GPD180-12	12	180/20HR	532	206	216	222	56	T4	C
GPD200-12	12	200/20HR	532	206	216	222	58.4	T4	C
GPD220-12	12	220/20HR	522	240	219	225	65	T5	C
GPD260-12	12	260/20HR	520	268	220	226	77	T5	C

Note: Product specifications are subject to change without notice.

UPS Power

EPS Power

Electric Power

Emergency Backup Power

Solar and Wind Power System

Signal System

Security System

Automatic Control System
