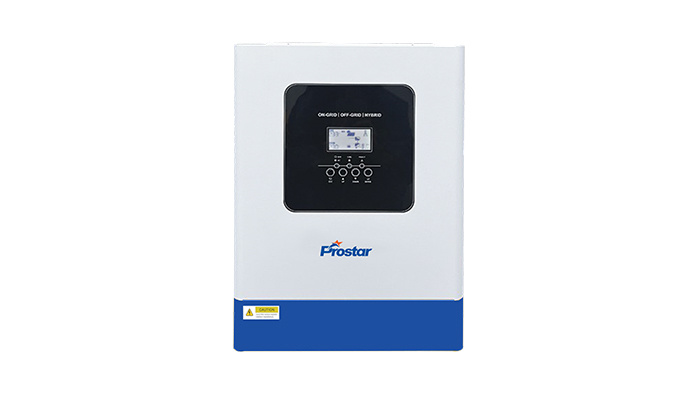

PHS VM Series On/Off Grid Hybrid Solar Inverter


Capacity: 5kW | PV Array MPPT Voltage Range: 120VDC-450VDC | Phase: 1 Phase / 3 Phase | Parallel: 12 Units




Features Introduction



1.Output power factor 1.0

2.High PV input voltage range  500Vdc Max

3.Built-in MPPT solar controller 100A

4.WiFi remote monitoring optional

5.Reserved communication port for BMS

6.Detachable dust cover for harsh environment

7.Self-consumption and Feed-in to the grid

8.User-adjustable charging current and voltage

9.Programmable supply priority for PV, Battery or Grid

10.Support multiple output priority: SBU / SUB / SUF / ZEC

11.Parallel operation up to 12 units , support  parallel  in 1 phase or 3phase

12.Battery equalization function to optimize battery performance and extend lifecycle

13.Programmable multiple  operation modes : Grid-tie , off-grid and grid-tie with backup

14.The external CT sensor will provide to detect power flowing back to the grid
