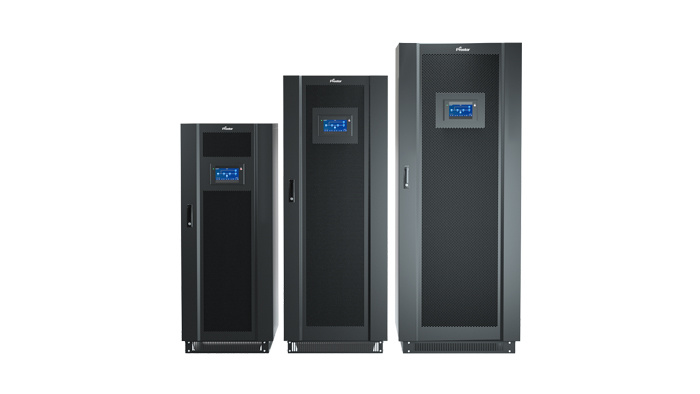

Prostar ET-Pro Series Industrial Digital UPS

Capacity: 10kVA-160kVA | Power Factor: 0.8 | Phase: 3/3 | Input/Output Voltage: 380VAC/400VAC/415AC | Frequency: 40Hz-70Hz




Features Introduction



● High-performance DSP full digital control

● Advanced battery management technology(ABM), extending the battery service life according to the charging and discharging characteristics of the battery

● Equipped with combined utility power and battery power supply technology,support utility power and battery power distribution ratio setting, suitable for weak utility grid and large load working environment

● Great load adaptability for various loads, like motor, impact, inductive, capacitive, non-linear, etc

● Support 100% unbalanced load, single-phase ful oad, any two-phase full load

● With self-detection function to ensure UPS initial start-up safety

● With fan failure alarm function to notify the users to replace it in time to ensure the reliable operation of the UPS system

● Unique structure design, full front maintenance, installation against the wall for some models, easy maintenance

● Support ECO mode, efficiency up to 98% in ECO mode

● Support parallel function

● 7-inch LCD capacitive touch screen, providing users with intuitive and convenient operating experience

● Complete data log for fault record, operation record and status record to be convenient for maintenance

● Support RS232, RS485, CAN, USB,dry contact, SNMP card, WiFi/GPRS card, etc. to meet various needs
